DIV 09 · FINISHESACOUSTICAL CEILINGSCUT SHEET INDEXED

USGZXLA24

USG Exterior Suspension System (Ceiling Suspension System). Model ZXLA24, ZXLA26, TSCT22ZXA. Conforms to ASTM C635; Fire-rated assemblies up to two hours; Suitable for wind-uplift applications; Proprietary Quick-Release cross tees. material: G90 hot-dipped galvanized grid with aluminum cap

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFZXLA24.pdfData sheet

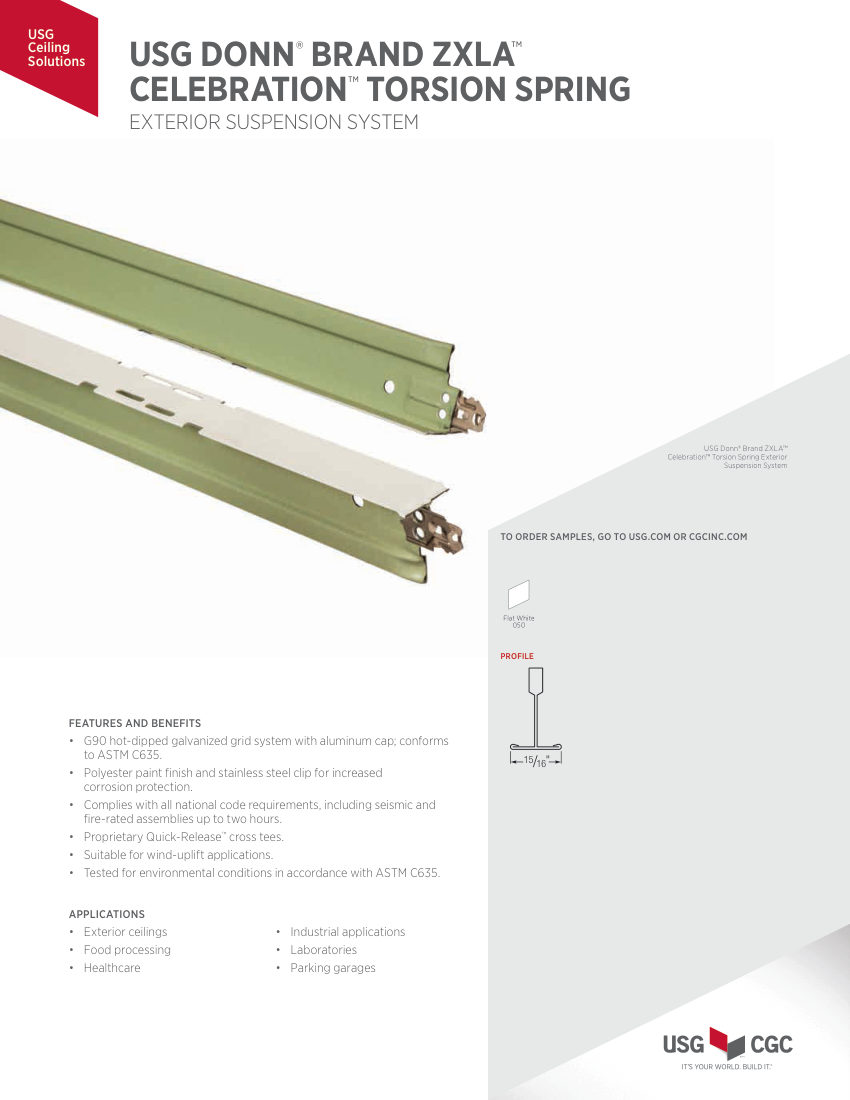

USG ZXLA24 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
USG
Catalog no.
ZXLA24
Product type
Acoustical Ceilings
MasterFormat
09 51 13
Cut sheet
PDF · manufacturer current

Product details

Catalog numberZXLA24
DescriptionUSG Exterior Suspension System (Ceiling Suspension System). Model ZXLA24, ZXLA26, TSCT22ZXA. Conforms to ASTM C635; Fire-rated assemblies up to two hours; Suitable for wind-uplift applications; Proprietary Quick-Release cross tees. material: G90 hot-dipped galvanized grid with aluminum cap
Connection size15/16" Tee System
End connectionACM7 Clip
FinishFlat White (050) Polyester paint
MountingExterior
Dimensions12' (3600 mm) length, 1.64" (42 mm) height.

Also cataloged as: ZXLA26, TSCT22ZXA, TSCT44ZXA, TSCT66ZXA, M7Z
