DIV 22 · PLUMBINGPLUMBINGCUT SHEET INDEXED

WattsSTM-F&TTRP-101MG-506G-15

Watts Steam Trap (Float & Thermostatic Steam Traps). Model STM-F&TTRP-101MG-50. Fail-safe design discharges condensate and air if float fails; Stainless steel valve head and seats for long service life; Air vent parts accessible without disturbing piping; Inlet baffle breaks up water hammer. material: Cast iron body, forged brass diaphragm cover, duplex phosphor bronze diaphragm, hardened stainless steel valve and seats, seamless copper float

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDF6G-15.pdfData sheet

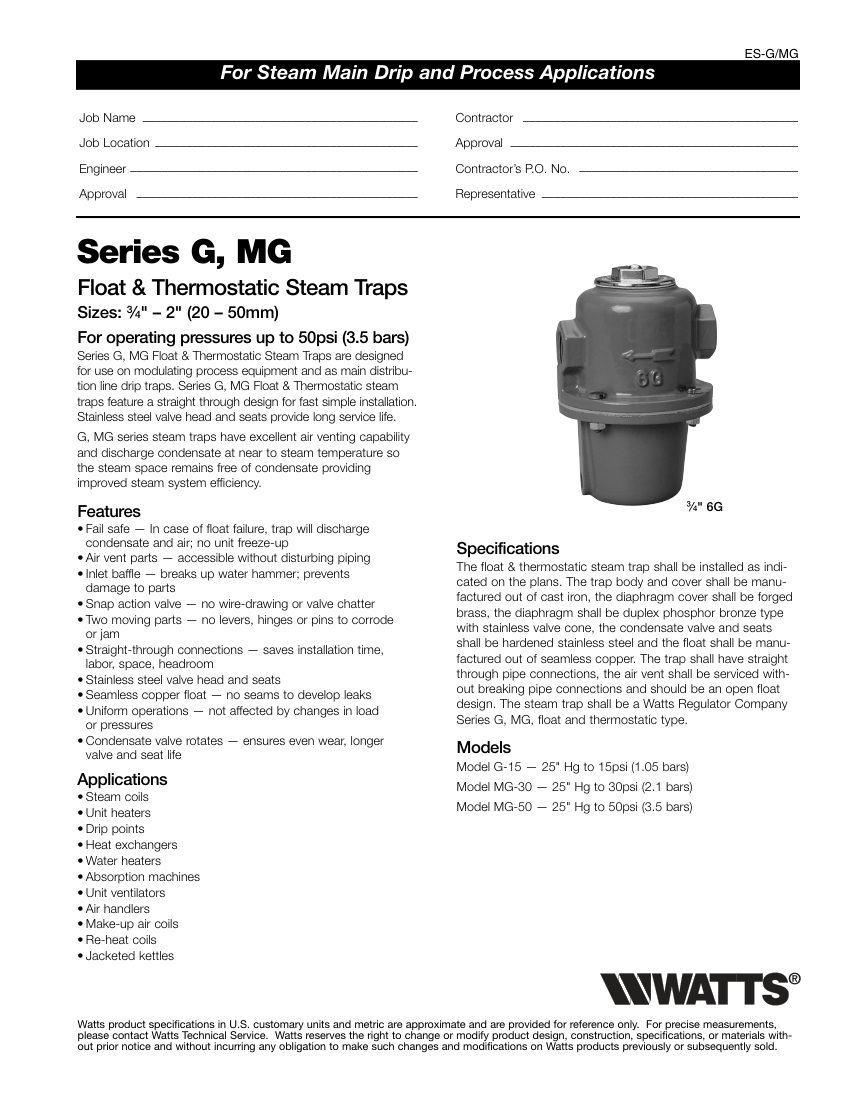

Watts 6G-15 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Watts
Catalog no.
6G-15
Product type
Plumbing
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog number6G-15
DescriptionWatts Steam Trap (Float & Thermostatic Steam Traps). Model STM-F&TTRP-101MG-50. Fail-safe design discharges condensate and air if float fails; Stainless steel valve head and seats for long service life; Air vent parts accessible without disturbing piping; Inlet baffle breaks up water hammer. material: Cast iron body, forged brass diaphragm cover, duplex phosphor bronze diaphragm, hardened stainless steel valve and seats, seamless copper float
Connection size3/4" – 2" (20 – 50mm)
End connectionStraight-through NPT
Pressure RatingUp to 50psi (3.5 bars)
FinishRust preventive enamel; moun

Also cataloged as: 7G-15, 8G-15, 91G-15, 101G-15, 111G-15, 7MG-30, 8MG-30, 91MG-30, 101MG-30, 111MG-30, 6MG-50
