DIV 22 · PLUMBINGPLUMBINGCUT SHEET INDEXED

WattsLF223

Watts Water Pressure Reducing Valve (Pressure Reducing Valves). Model LF223-LP 1. High capacity design with enlarged diaphragm, spring cage, and seat orifice; Standard setting is 50psi (345 kPa); Serviceable in line without removing valve; Optional bypass feature for thermal expansion pressure control. material: Lead Free cast copper silicon alloy

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFLF223.pdfData sheet

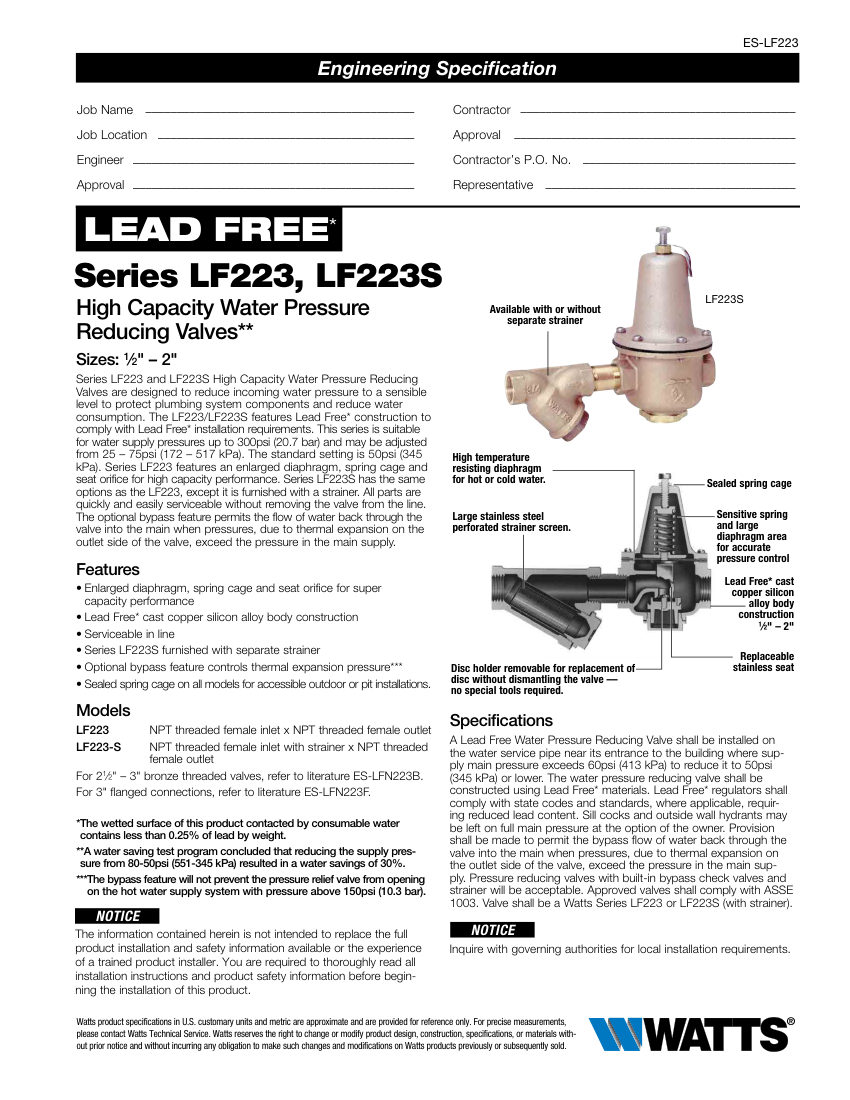

Watts LF223 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Watts
Catalog no.
LF223
Product type
Plumbing
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog numberLF223
DescriptionWatts Water Pressure Reducing Valve (Pressure Reducing Valves). Model LF223-LP 1. High capacity design with enlarged diaphragm, spring cage, and seat orifice; Standard setting is 50psi (345 kPa); Serviceable in line without removing valve; Optional bypass feature for thermal expansion pressure control. material: Lead Free cast copper silicon alloy
Connection size1/2" – 2"
End connectionNPT threaded female inlet x NPT threaded female outlet
Pressure RatingUp to 300psi (20.7 bar) supply; adjustable 25 – 75psi (172 – 517 kPa)
MountingIn-line
ComplianceLead Free (wetted surface < 0.25%

Also cataloged as: LF223-S, LF223-B, LF223-LP, LF223-HP

  • Official cut sheet, indexed
  • Auto-matched to your schedule
  • Cover + TOC, one click
