American StandardUniversal Bathtub Drain1583470

American Standard Rotary Bath Waste and Overflow with Pop-up Drain (Bathtub Drain). Model 1583.470. Accommodates bathtubs with 17" to 19" distance from overflow to drain; Features rotary knob with pop-up linkage design; Constructed of durable 1-1/2" tubular brass; Compatible with American Standard Master and Luxury series bathtubs. material: 1-1/2" tubular brass, powder coated brass

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDF1583470.pdfData sheet

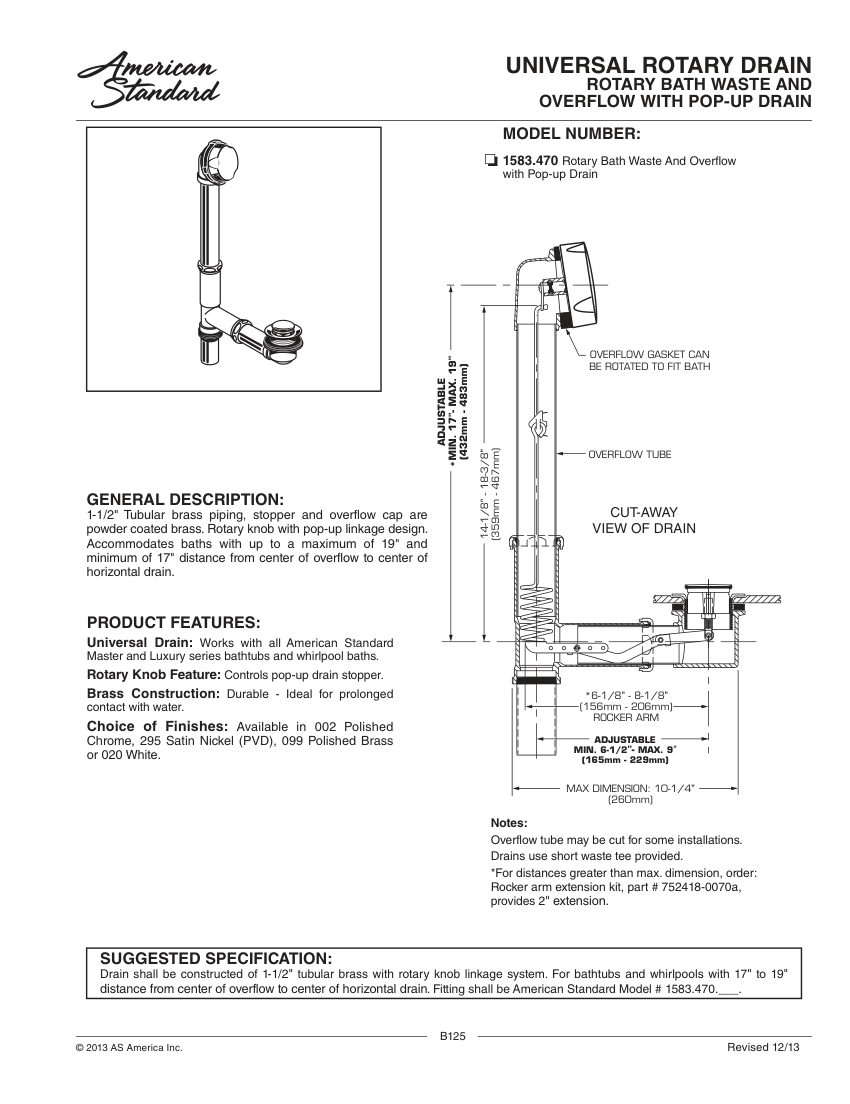

American Standard 1583470 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
American Standard
Catalog no.
1583470
Product type
Bathtubs
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog number1583470
DescriptionAmerican Standard Rotary Bath Waste and Overflow with Pop-up Drain (Bathtub Drain). Model 1583.470. Accommodates bathtubs with 17" to 19" distance from overflow to drain; Features rotary knob with pop-up linkage design; Constructed of durable 1-1/2" tubular brass; Compatible with American Standard Master and Luxury series bathtubs. material: 1-1/2" tubular brass, powder coated brass
Connection size1-1/2"
End connectionPop-up drain stopper
Finish002 Polished Chrome, 295 Satin Nickel (PVD), 099 Polished Brass, 020 White
MountingUniversal rotary, adjustable overflow tube
DimensionsMi

Also cataloged as: 1583470.002, 1583470.020, 1583470.099, 1583470.295
