DIV 22 · PLUMBINGWATER CLOSETS & BIDETSCUT SHEET INDEXED

American Standard606B261

American Standard Concealed Toilet Flush Valve (Ultima Selectronic). Model 606B261. Sensor operated with fully mechanical manual override; Self-cleaning piston with integral wiper spring; Fail-safe design closes valve on power or water loss; Includes 1" IPS angle stop with back-flow protection. material: Dezincification Resistant brass alloy, Chrome-plated metal wall plate, EPDM Seals

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDF606B261.pdfData sheet

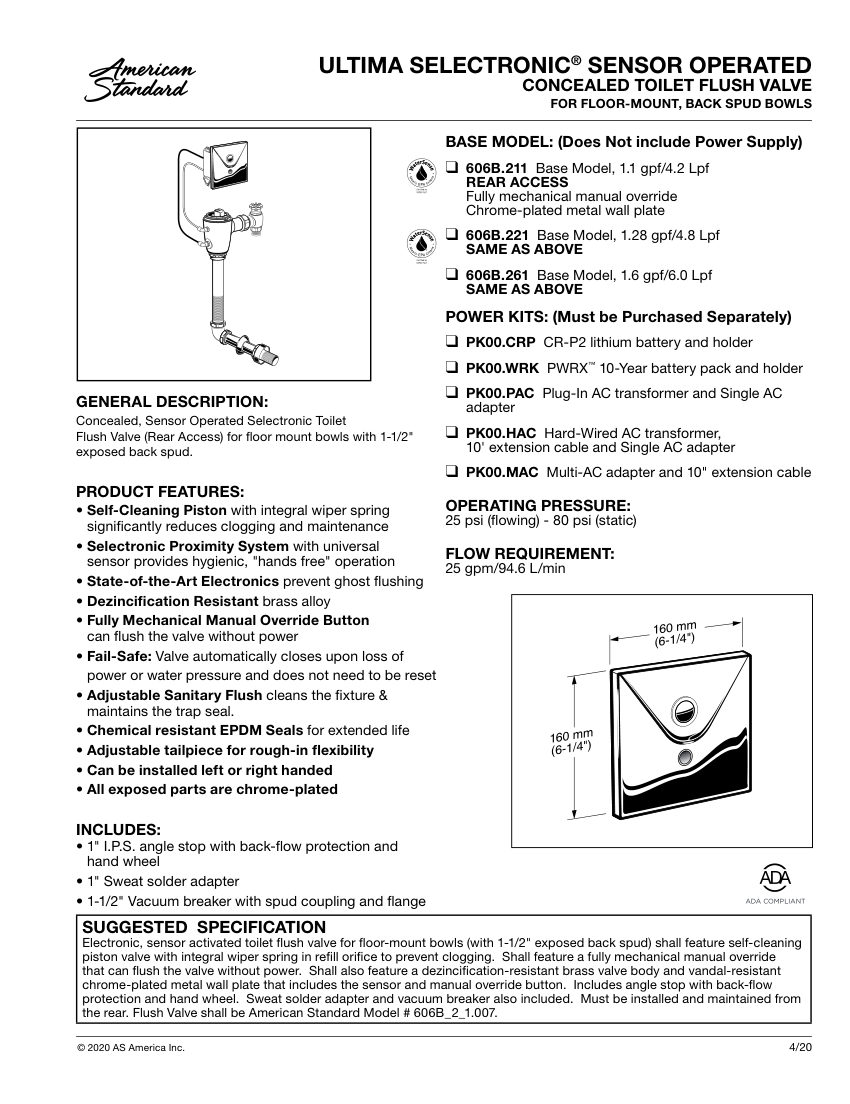

American Standard 606B261 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
American Standard
Catalog no.
606B261
Product type
Water Closets & Bidets
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog number606B261
DescriptionAmerican Standard Concealed Toilet Flush Valve (Ultima Selectronic). Model 606B261. Sensor operated with fully mechanical manual override; Self-cleaning piston with integral wiper spring; Fail-safe design closes valve on power or water loss; Includes 1" IPS angle stop with back-flow protection. material: Dezincification Resistant brass alloy, Chrome-plated metal wall plate, EPDM Seals
Connection size1" I.P.S. supply, 1-1/2" back spud
End connectionSweat solder adapter, Vacuum breaker with spud coupling
Pressure Rating25 psi (flowing) - 80 psi (static)
Flow Rate1.6 gpf/6.0 Lpf; finish:

Also cataloged as: 606B261.007
