DIV 22 · PLUMBINGPLUMBING FIXTURESCUT SHEET INDEXED

American StandardBedpan Washer Diverter Assembly With Straight Tube6047800

American Standard Bedpan Diverter Assembly (Bedpan Washer Diverter Assembly). Model 6047.800.002 / 6047.815.002. For use with Manual flush valves on 1-1/2" top spud flushometer bowls; Includes EPDM vacuum breaker assembly for chemical resistance; Counter balanced pivot assembly keeps spray arm in last position; Model 6047.800 features straight down tube. material: Solid brass

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDF6047800.pdfData sheet

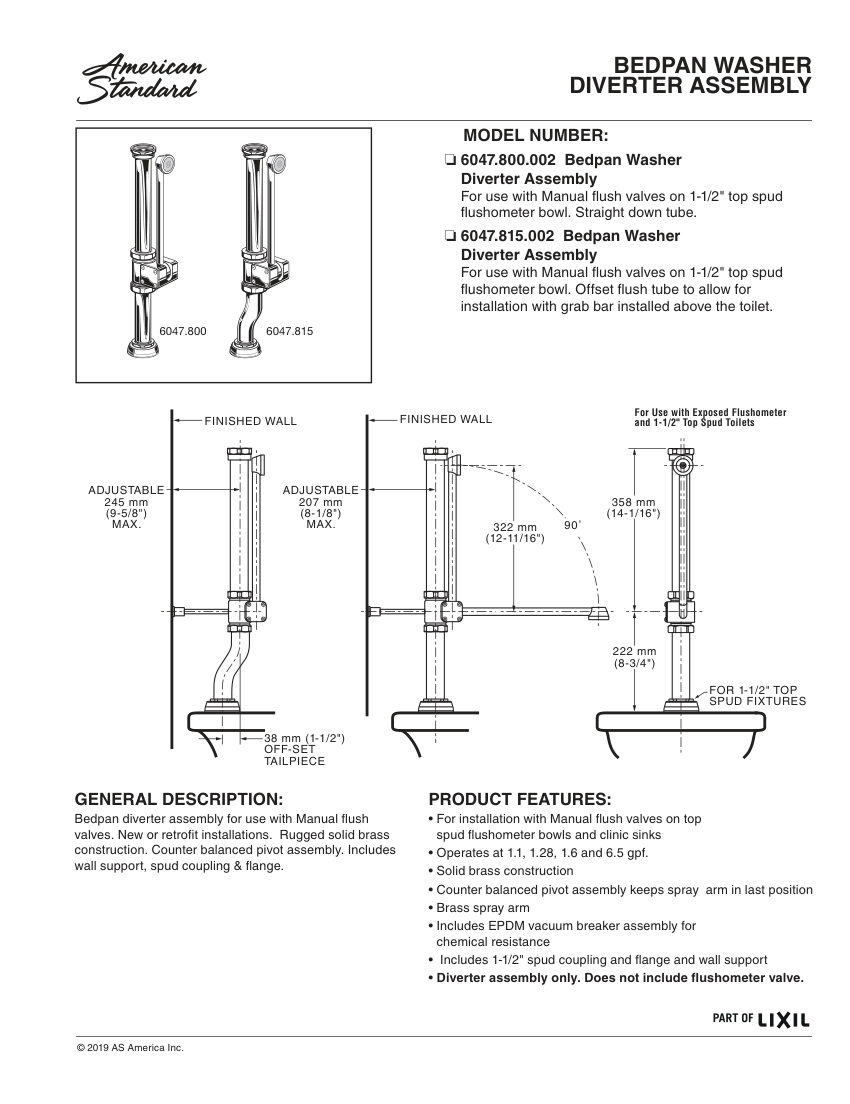

American Standard 6047800 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
American Standard
Catalog no.
6047800
Product type
Plumbing Fixtures
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog number6047800
DescriptionAmerican Standard Bedpan Diverter Assembly (Bedpan Washer Diverter Assembly). Model 6047.800.002 / 6047.815.002. For use with Manual flush valves on 1-1/2" top spud flushometer bowls; Includes EPDM vacuum breaker assembly for chemical resistance; Counter balanced pivot assembly keeps spray arm in last position; Model 6047.800 features straight down tube. material: Solid brass
Connection size1-1/2" top spud
End connectionSpud coupling and flange
Flow Rate1.1, 1.28, 1.6, and 6.5 gpf
MountingWall support included
DimensionsAdjustable 245 mm (9-5/8") max (6047.800) / 207 mm (8-1/8") ma

Also cataloged as: 6047800.002
