DIV 23 · HVACDAMPERSCUT SHEET INDEXED
Greenheckmulti-voltage transformer385709
Greenheck Multi-Voltage Transformer (Electrical). Model 385709. Capacity: 50 VA
Free to start · No card required · The agent pulls this cut sheet in automatically
- Manufacturer
- Greenheck
- Catalog no.
- 385709
- Product type
- Dampers
- MasterFormat
- 23

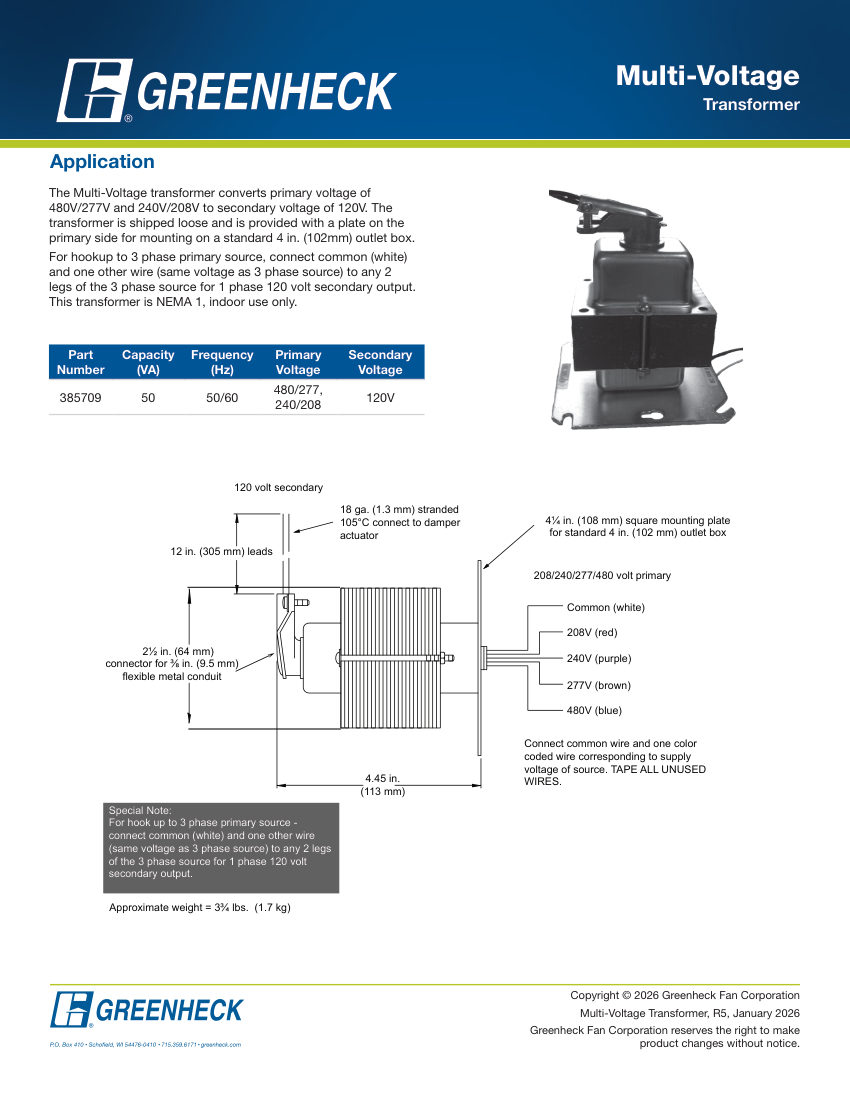

- Cut sheet
- PDF · manufacturer current
Product details
| Catalog number | 385709 |
|---|---|
| Description | Greenheck Multi-Voltage Transformer (Electrical). Model 385709. Capacity: 50 VA |
| Frequency | 50/60 Hz; Indoor use only |
| Weight | 3.7 lbs (1.7 kg). connectionSize: 3/8 in. (9.5 mm) flexible metal conduit |
| End connection | 18 ga. (1.3 mm) stranded 105°C |
| Mounting | 4 in. (102 mm) outlet box |
| Dimensions | 4.45 in. (113 mm) |
| Compliance | NEMA 1 |
| Voltage | 480/277, 240/208V primary; 120V secondary. |
