Greenheckabd balancing damper

Greenheck Automatic Balancing Damper (HVAC Dampers). Model ABD. Maintains constant airflow volume in supply and exhaust applications; Blade calibrated to automatically adjust to changing pressures; Includes removable rubber gasket outer seal; Stainless steel leaf type spring. material: Reinforced UL 94 Thermoplastic Resins

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFabd-balancing-damper.pdfData sheet

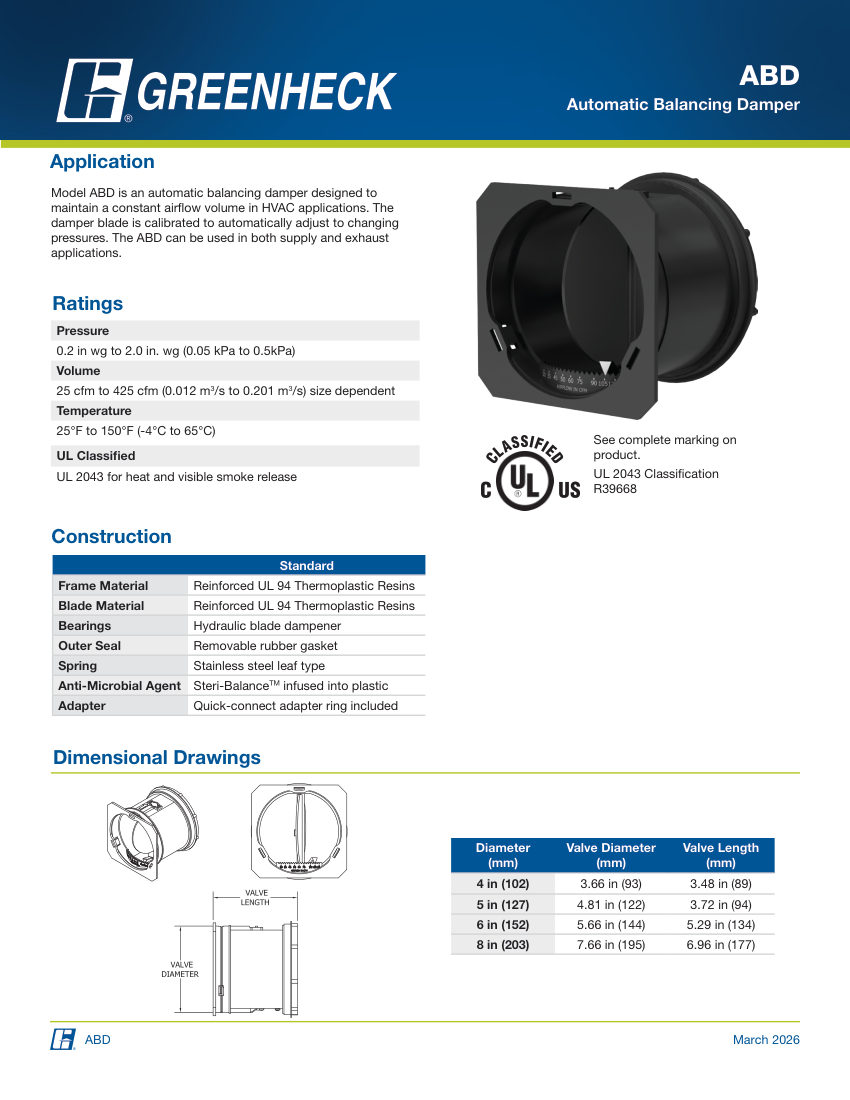

Greenheck abd balancing damper cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Greenheck
Catalog no.
abd balancing damper
Product type
Dampers
MasterFormat
23
Cut sheet
PDF · manufacturer current

Product details

Catalog numberabd balancing damper
DescriptionGreenheck Automatic Balancing Damper (HVAC Dampers). Model ABD. Maintains constant airflow volume in supply and exhaust applications; Blade calibrated to automatically adjust to changing pressures; Includes removable rubber gasket outer seal; Stainless steel leaf type spring. material: Reinforced UL 94 Thermoplastic Resins
Connection size4 in (102 mm) to 8 in (203 mm)
End connectionQuick-connect adapter ring
Pressure Rating0.2 in wg to 2.0 in. wg (0.05 kPa to 0.5 kPa)
Flow Rate25 cfm to 425 cfm (0.012 m3/s to 0.201 m3/s)
DimensionsValve Length: 3.48 in (89 mm) to 6.96 in (177 mm).
