DIV 23 · HVACDAMPERSCUT SHEET INDEXED

Greenheckabd-fd balancing damper

Greenheck Automatic Balancing Damper with Fire Damper (HVAC Dampers). Model ABD-FD. Maintains constant airflow volume in HVAC applications; Includes UL 555 rated 1.5 or 3 hour static fire damper; Fusible link rating 165°F (74°C) standard, 212°F (100°C) optional; Anti-microbial Steri-Balance infused into plastic. material: Reinforced UL 94 Thermoplastic Resins (ABD), Galvanized Steel (Fire Damper)

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFabd-fd-balancing-damper.pdfData sheet

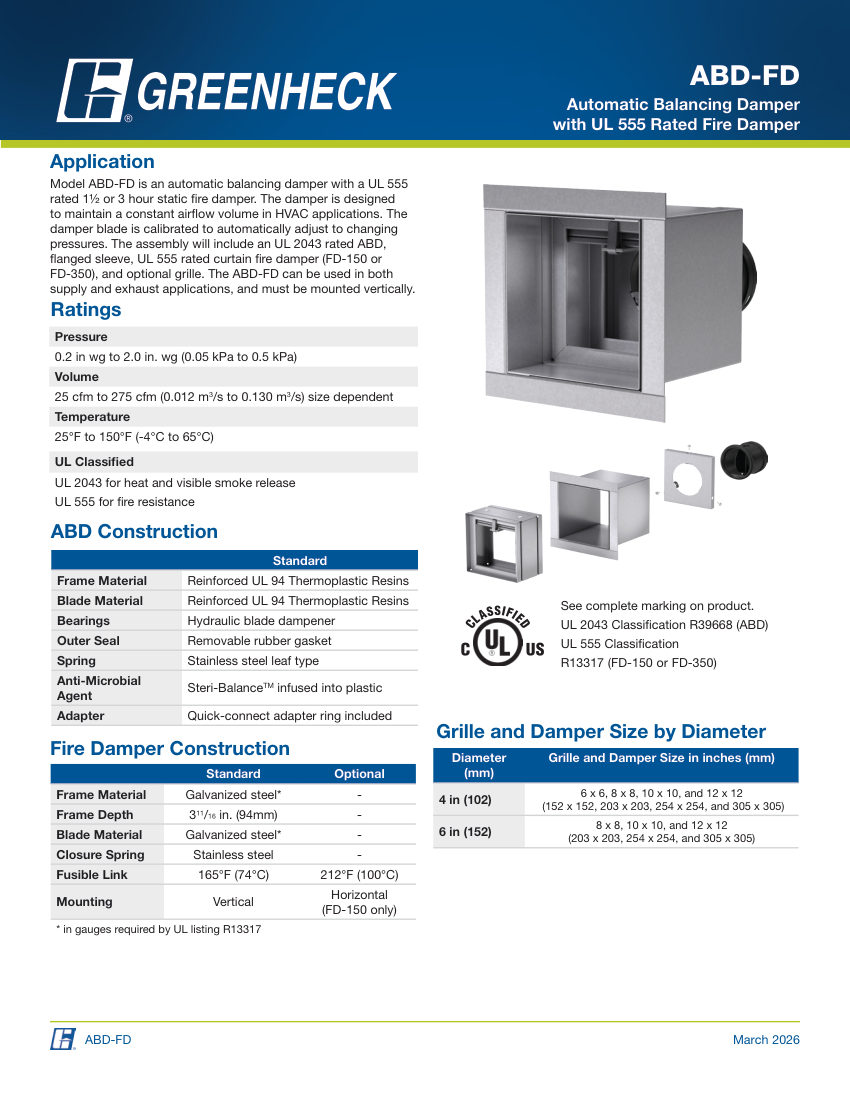

Greenheck abd-fd balancing damper cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Greenheck
Catalog no.
abd-fd balancing damper
Product type
Dampers
MasterFormat
23
Cut sheet
PDF · manufacturer current

Product details

Catalog numberabd-fd balancing damper
DescriptionGreenheck Automatic Balancing Damper with Fire Damper (HVAC Dampers). Model ABD-FD. Maintains constant airflow volume in HVAC applications; Includes UL 555 rated 1.5 or 3 hour static fire damper; Fusible link rating 165°F (74°C) standard, 212°F (100°C) optional; Anti-microbial Steri-Balance infused into plastic. material: Reinforced UL 94 Thermoplastic Resins (ABD), Galvanized Steel (Fire Damper)
Connection size4 in (102 mm), 6 in (152 mm)
End connectionFlanged sleeve, Quick-connect adapter ring
Pressure Rating0.2 in wg to 2.0 in wg (0.05 kPa to 0.5 kPa)
Flow Rate25 cfm to 275 cfm (0.0
