Greenheckabd-rb balancing damper
Greenheck Automatic Balancing Damper for Register Boxes (Air Distribution). Model ABD-RB. Maintains constant CFM independent of system pressure; Configurable for supply or exhaust applications; Available with factory supplied grille; Temperature range 25°F to 150°F (-4°C to 65°C). material: Steel plenum box, Reinforced UL 94 Thermoplastic Resins frame and blades
Free to start · No card required · The agent pulls this cut sheet in automatically
- Manufacturer
- Greenheck
- Catalog no.
- abd-rb balancing damper
- Product type
- Dampers
- MasterFormat
- 23

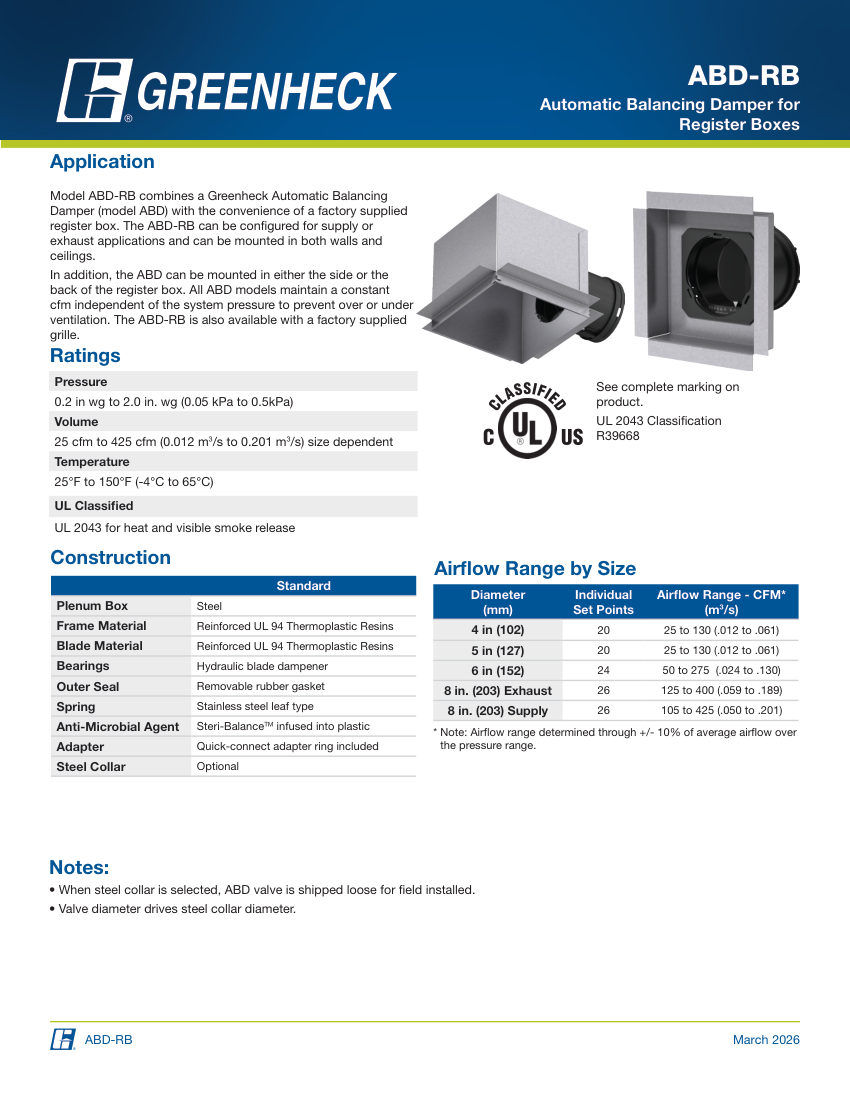

- Cut sheet
- PDF · manufacturer current
Product details
| Catalog number | abd-rb balancing damper |
|---|---|
| Description | Greenheck Automatic Balancing Damper for Register Boxes (Air Distribution). Model ABD-RB. Maintains constant CFM independent of system pressure; Configurable for supply or exhaust applications; Available with factory supplied grille; Temperature range 25°F to 150°F (-4°C to 65°C). material: Steel plenum box, Reinforced UL 94 Thermoplastic Resins frame and blades |
| Connection size | 4 in (102), 5 in (127), 6 in (152), 8 in (203) |
| End connection | Quick-connect adapter ring |
| Pressure Rating | 0.2 in wg to 2.0 in. wg (0.05 kPa to 0.5 kPa) |
| Flow Rate | 25 cfm to 425 cfm (0.012 m³/s to 0.201 m³/s); mounting |
