DIV 23 · HVACDAMPERSCUT SHEET INDEXED

Greenheckabd-z2 balancing damperABD-Z2

Greenheck Automatic Balancing Damper (HVAC Dampers). Model ABD-Z2. Toggles between two pressure independent cfm setpoints; Includes electric actuator with auxiliary switches; Hydraulic blade dampener with stainless steel leaf spring; Steri-Balance anti-microbial agent infused into plastic. material: Steel plenum box, Reinforced UL 94 thermoplastic resins blade/frame

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFABD-Z2.pdfData sheet

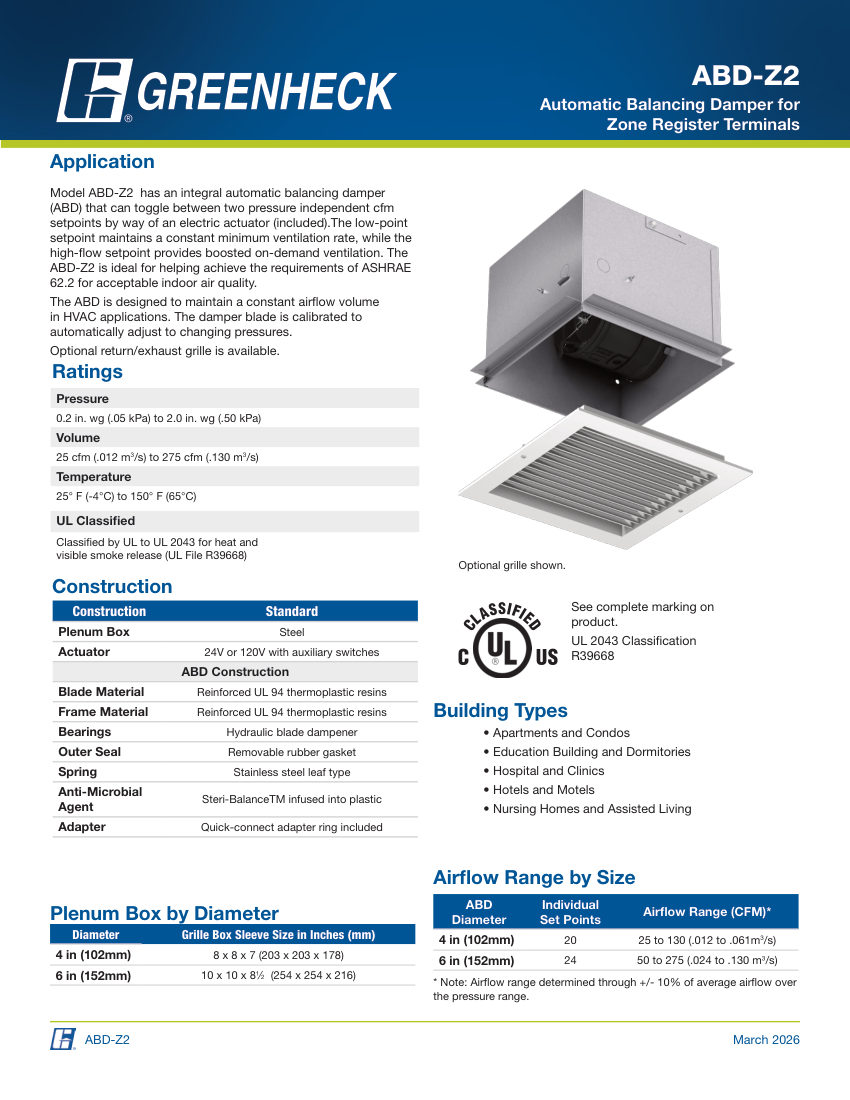

Greenheck ABD-Z2 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Greenheck
Catalog no.
ABD-Z2
Product type
Dampers
MasterFormat
23
Cut sheet
PDF · manufacturer current

Product details

Catalog numberABD-Z2
DescriptionGreenheck Automatic Balancing Damper (HVAC Dampers). Model ABD-Z2. Toggles between two pressure independent cfm setpoints; Includes electric actuator with auxiliary switches; Hydraulic blade dampener with stainless steel leaf spring; Steri-Balance anti-microbial agent infused into plastic. material: Steel plenum box, Reinforced UL 94 thermoplastic resins blade/frame
Connection size4 in (102mm) or 6 in (152mm) diameter
End connectionQuick-connect adapter ring
Pressure Rating0.2 in. wg (.05 kPa) to 2.0 in. wg (.50 kPa)
Flow Rate25 cfm (.012 m3/s) to 275 cfm (.130 m3/s)
MountingIntake
