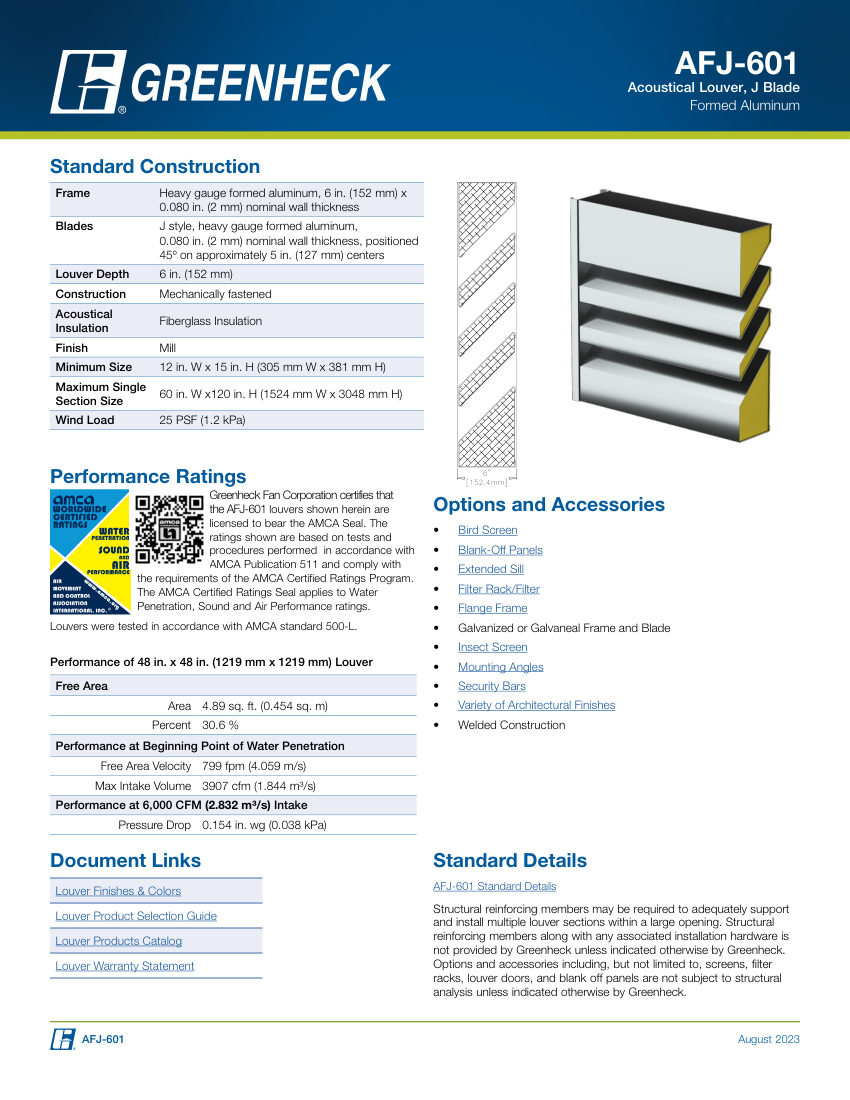

Greenheckafj-601 accoustical louverafj-601
Greenheck Acoustical Louver (Louver). Model AFJ-601. J style blades positioned 45 degrees on 5 in. centers; 6 in. louver depth with fiberglass insulation; Wind load rating of 25 PSF (1.2 kPa); Free area of 30.6% for 48 in. x 48 in. size. material: Formed Aluminum
Free to start · No card required · The agent pulls this cut sheet in automatically
- Manufacturer
- Greenheck
- Catalog no.
- afj-601
- Product type
- Louvers
- MasterFormat
- 23
- Cut sheet
- PDF · manufacturer current
Product details
| Catalog number | afj-601 |
|---|---|
| Description | Greenheck Acoustical Louver (Louver). Model AFJ-601. J style blades positioned 45 degrees on 5 in. centers; 6 in. louver depth with fiberglass insulation; Wind load rating of 25 PSF (1.2 kPa); Free area of 30.6% for 48 in. x 48 in. size. material: Formed Aluminum |
| Flow Rate | 3907 cfm (1.844 m³/s) max intake volume |
| Finish | Mill |
| Mounting | Mechanically fastened |
| Dimensions | Min 12 in. W x 15 in. H; Max 60 in. W x 120 in. H |
| Compliance | AMCA Certified Ratings Program. |
