DIV 23 · HVACLOUVERSCUT SHEET INDEXED

Greenheckafj-801 accoustical louverafj-801

Greenheck Acoustical Louver (Louver). Model AFJ-801. J-style blades positioned at 45 degrees on 5 in. centers; Louver depth is 8 in. (203 mm); Includes fiberglass acoustical insulation; Wind load rating of 25 PSF (1.2 kPa). material: Formed Aluminum

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFafj-801.pdfData sheet

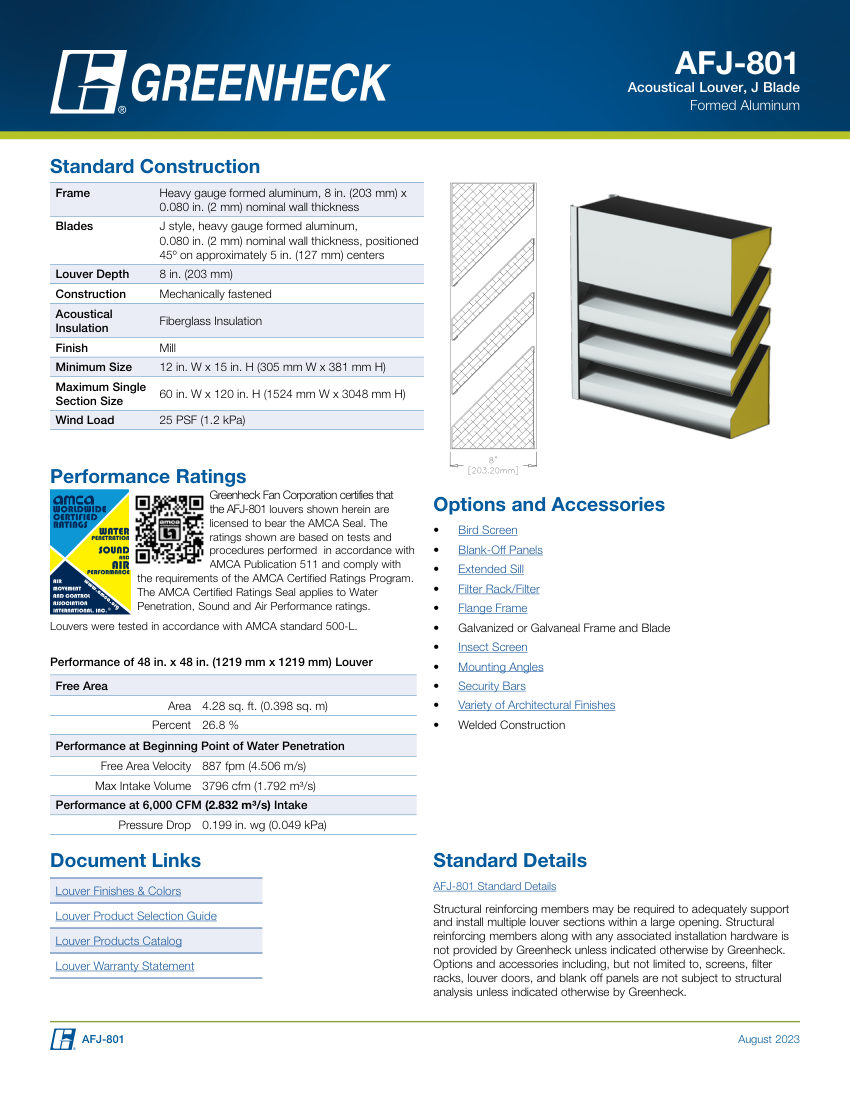

Greenheck afj-801 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Greenheck
Catalog no.
afj-801
Product type
Louvers
MasterFormat
23
Cut sheet
PDF · manufacturer current

Product details

Catalog numberafj-801
DescriptionGreenheck Acoustical Louver (Louver). Model AFJ-801. J-style blades positioned at 45 degrees on 5 in. centers; Louver depth is 8 in. (203 mm); Includes fiberglass acoustical insulation; Wind load rating of 25 PSF (1.2 kPa). material: Formed Aluminum
FinishMill
MountingMechanically fastened
DimensionsMin 12 in. W x 15 in. H; Max 60 in. W x 120 in. H
ComplianceAMCA 511, AMCA 500-L.
