DIV 23 · HVACLOUVERSCUT SHEET INDEXED

Greenheckafl-501 fema louverafl-501

Greenheck FEMA Louver (Louver). Model AFL-501. Chevron blade design positioned at 45 degrees; Louver depth is 5.5 in. (140 mm); Rated for debris impact of 15 lb 2x4 at 100 MPH; Free area is 47.5% for a 48 in. x 48 in. section. material: 5052-H32 Aluminum Frame, 6061-T6 Aluminum Blades

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFafl-501.pdfData sheet

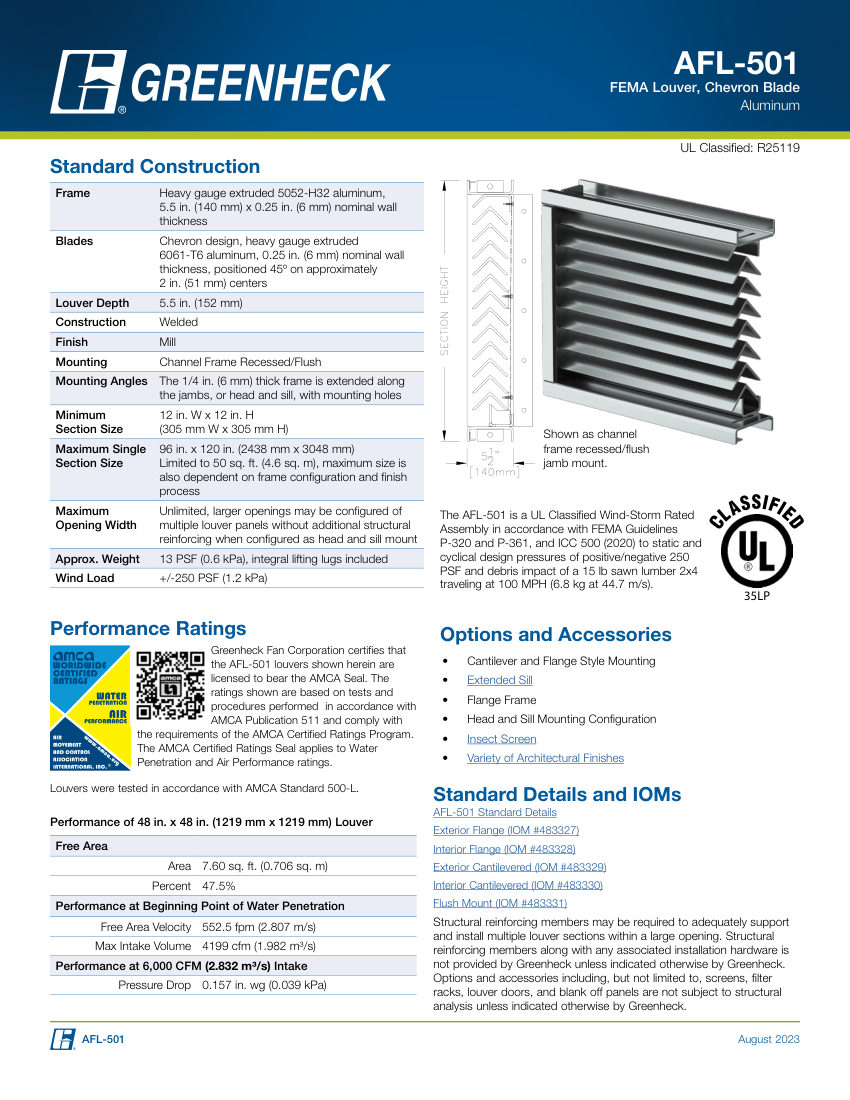

Greenheck afl-501 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Greenheck
Catalog no.
afl-501
Product type
Louvers
MasterFormat
23
Cut sheet
PDF · manufacturer current

Product details

Catalog numberafl-501
DescriptionGreenheck FEMA Louver (Louver). Model AFL-501. Chevron blade design positioned at 45 degrees; Louver depth is 5.5 in. (140 mm); Rated for debris impact of 15 lb 2x4 at 100 MPH; Free area is 47.5% for a 48 in. x 48 in. section. material: 5052-H32 Aluminum Frame, 6061-T6 Aluminum Blades
Pressure Rating+/-250 PSF (1.2 kPa)
Flow Rate4199 cfm (1.982 m³/s) at 6,000 CFM intake
FinishMill
MountingChannel Frame Recessed/Flush
DimensionsMin 12 in. W x 12 in. H; Max Single Section 96 in. x 120 in.
  • Official cut sheet, indexed
  • Auto-matched to your schedule
  • Cover + TOC, one click

From fixture schedule to submittal in minutes.

How the Builder works →
  1. 01

    Describe the job

    Paste a fixture schedule, upload a spec section, or just list catalog numbers and quantities.

  2. 02

    The agent matches & assembles

    Products are matched from the indexed library and current cut sheets are pulled into a formatted package with cover and TOC.

  3. 03

    Share for review

    Send one link for sign-off, then roll the approved package into a quote or PO without retyping a part number.

More from Greenheck

All 305 cut sheets →
Browse every manufacturer in the cut sheet library →

Put the afl-501 in a submittal package.

Describe the job and the AI agent builds the whole package — cut sheets pulled, schedule matched, cover and TOC included.

Get started freeNo card required
