DIV 23 · HVACLOUVERSCUT SHEET INDEXED

Greenheckafl-601 fema louverafl-601

Greenheck Hurricane Louver (Louver). Model AFL-601. Chevron blade design with vertical rain-resistant back blades; Louver depth is 6 in. (152 mm); Free area is 43.6% for a 48 in. x 48 in. section; Rated for wind-driven rain and debris impact (15 lb 2x4 at 100 MPH). material: 6005-T5 Aluminum

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFafl-601.pdfData sheet

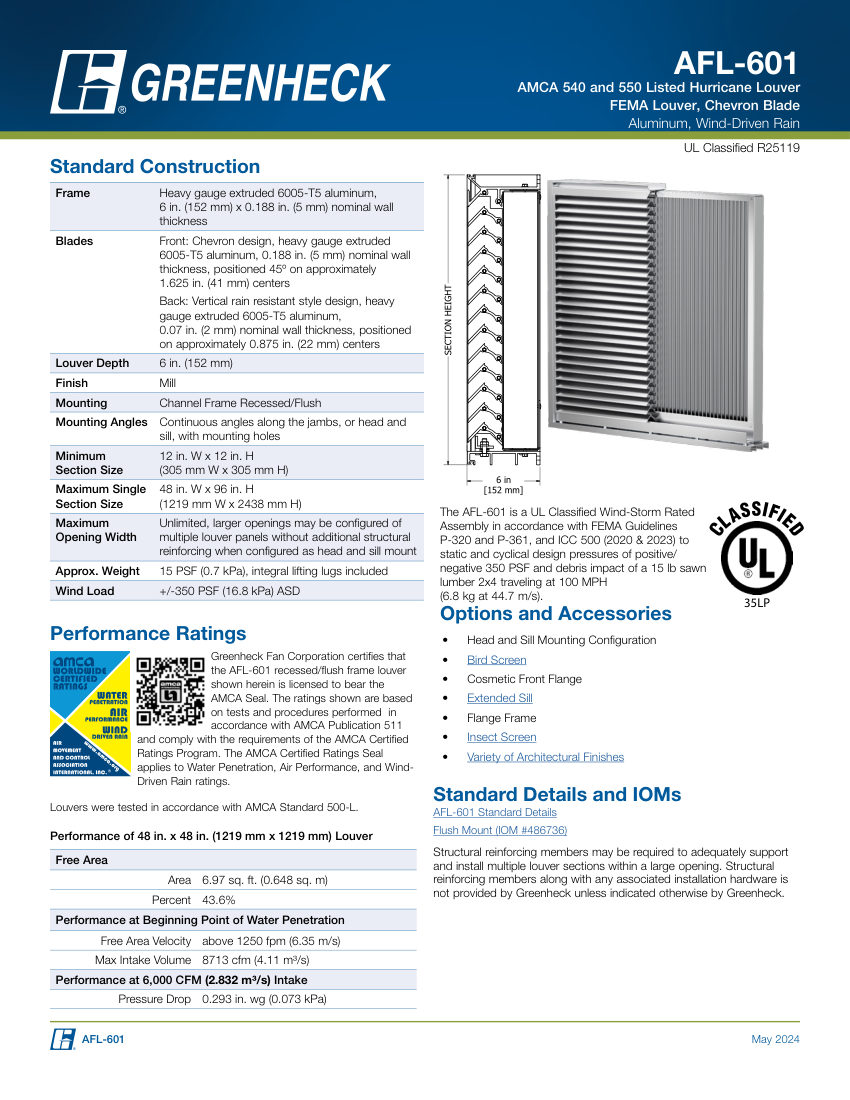

Greenheck afl-601 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Greenheck
Catalog no.
afl-601
Product type
Louvers
MasterFormat
23
Cut sheet
PDF · manufacturer current

Product details

Catalog numberafl-601
DescriptionGreenheck Hurricane Louver (Louver). Model AFL-601. Chevron blade design with vertical rain-resistant back blades; Louver depth is 6 in. (152 mm); Free area is 43.6% for a 48 in. x 48 in. section; Rated for wind-driven rain and debris impact (15 lb 2x4 at 100 MPH). material: 6005-T5 Aluminum
Pressure Rating+/-350 PSF (16.8 kPa) ASD
Flow Rate8713 cfm (4.11 m³/s) Max Intake Volume
FinishMill
MountingChannel Frame Recessed/Flush
DimensionsMin 12 in. W x 12 in. H; Max Single Section 48 in. W x 96 in. H.
