Greenheckamd-23 air measuring damperamd-23
Greenheck Air Measuring Damper (Air Measuring Station). Model AMD-23. Combines airflow measurement and control damper functionality; Standard 24 VAC modulating actuator with NEMA 2 rating; Includes factory supplied 0-10 VDC or 4-20 mA pressure transducer; Operating temperature range -20°F to 180°F. material: Galvanized Steel
Free to start · No card required · The agent pulls this cut sheet in automatically
- Manufacturer
- Greenheck
- Catalog no.
- amd-23
- Product type
- Dampers|Air-Measuring-Products
- MasterFormat
- 23

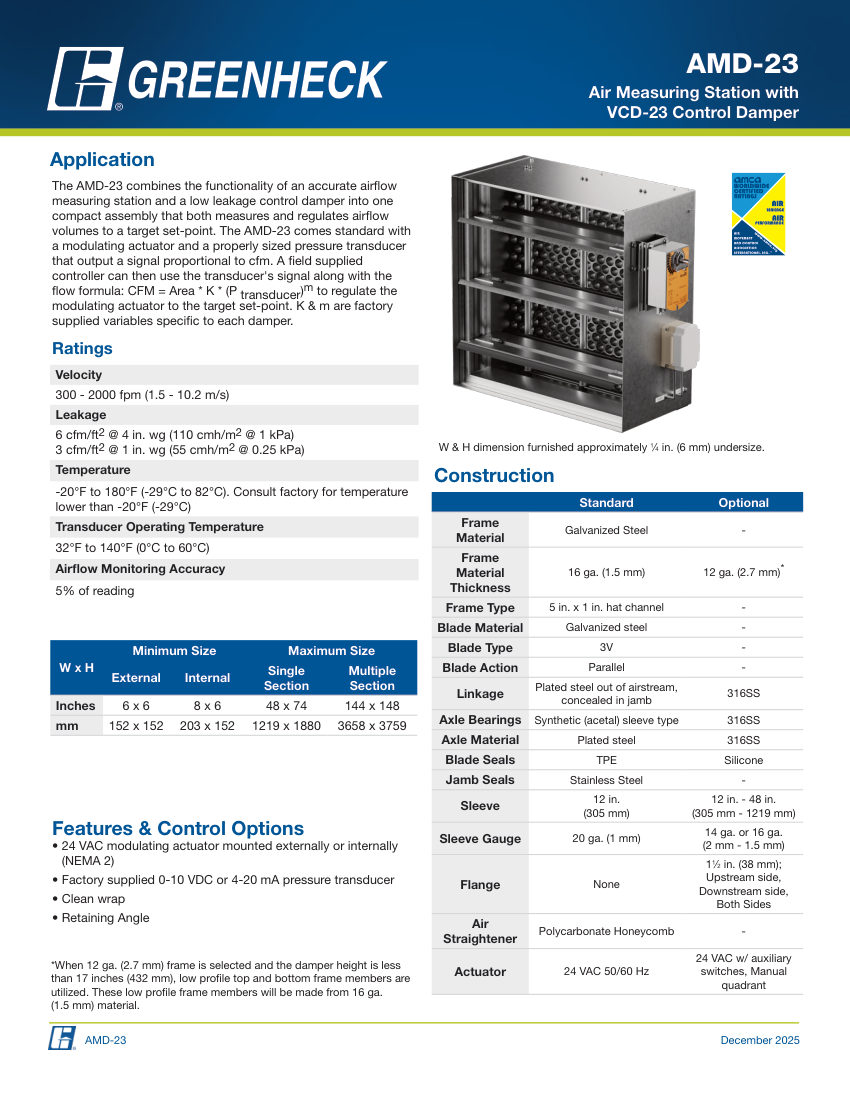

- Cut sheet
- PDF · manufacturer current
Product details
| Catalog number | amd-23 |
|---|---|
| Description | Greenheck Air Measuring Damper (Air Measuring Station). Model AMD-23. Combines airflow measurement and control damper functionality; Standard 24 VAC modulating actuator with NEMA 2 rating; Includes factory supplied 0-10 VDC or 4-20 mA pressure transducer; Operating temperature range -20°F to 180°F. material: Galvanized Steel |
| Connection size | 6x6 in. to 144x148 in. |
| End connection | Flange (Optional) |
| Pressure Rating | 6 cfm/ft2 @ 4 in. wg |
| Flow Rate | 300 - 2000 fpm |
| Finish | Galvanized. |
