DIV 23 · HVACDAMPERS|AIR-MEASURING-PRODUCTSCUT SHEET INDEXED

Greenheckamd-33 air measuring damperamd-33

Greenheck Air Measuring Damper (Air Measuring Station). Model AMD-33. Combines airflow measuring station and low leakage control damper; Includes 24 VAC modulating actuator and pressure transducer; Airflow monitoring accuracy of 5% of reading; Operating temperature range -20°F to 180°F (-29°C to 82°C). material: Galvanized Steel Frame, Galvanized Steel Blades

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFamd-33.pdfData sheet

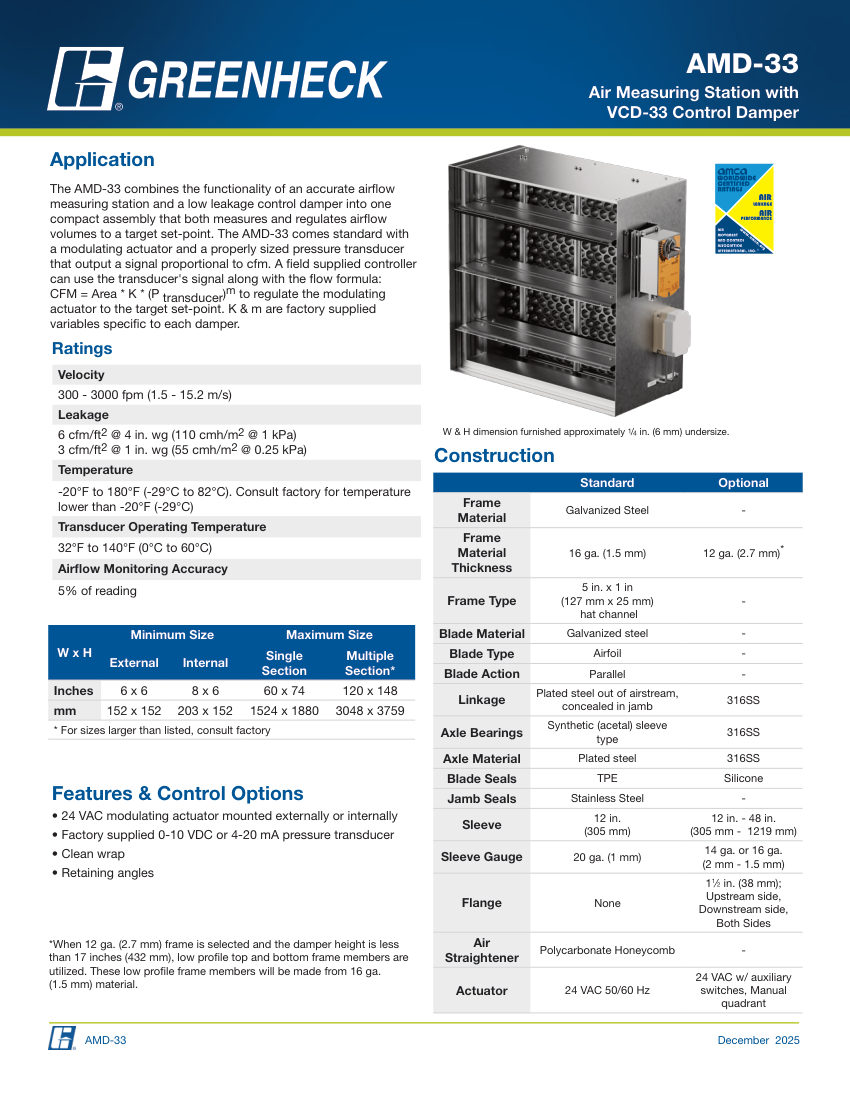

Greenheck amd-33 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Greenheck
Catalog no.
amd-33
Product type
Dampers|Air-Measuring-Products
MasterFormat
23
Cut sheet
PDF · manufacturer current

Product details

Catalog numberamd-33
DescriptionGreenheck Air Measuring Damper (Air Measuring Station). Model AMD-33. Combines airflow measuring station and low leakage control damper; Includes 24 VAC modulating actuator and pressure transducer; Airflow monitoring accuracy of 5% of reading; Operating temperature range -20°F to 180°F (-29°C to 82°C). material: Galvanized Steel Frame, Galvanized Steel Blades
Connection sizeMin 6x6 in (152x152 mm), Max 120x148 in (3048x3759 mm)
End connectionFlange (Optional)
Pressure RatingLeakage 6 cfm/ft2 @ 4 in. wg
Flow RateVelocity 300 - 3000 fpm
FinishGalvanized.
