DIV 23 · HVACDAMPERSCUT SHEET INDEXED

Greenheckvari-green controller for amd series and amsAMD Controller, R7

Greenheck Constant Volume Controller (HVAC Control). Model vari-green controller for amd series and ams. Controls AMD Series and AMS airflow measuring stations

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFAMD-Controller-R7.pdfData sheet

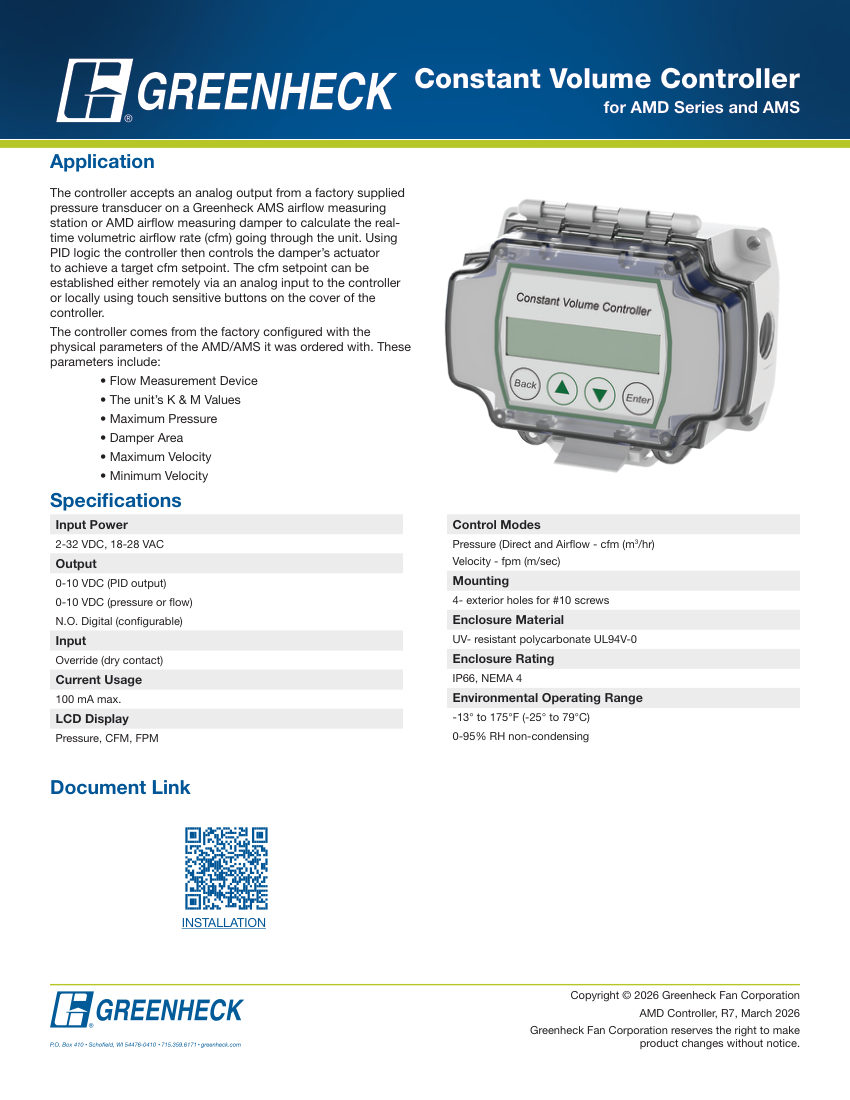

Greenheck AMD Controller, R7 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Greenheck
Catalog no.
AMD Controller, R7
Product type
Dampers
MasterFormat
23
Cut sheet
PDF · manufacturer current

Product details

Catalog numberAMD Controller, R7
DescriptionGreenheck Constant Volume Controller (HVAC Control). Model vari-green controller for amd series and ams. Controls AMD Series and AMS airflow measuring stations
Output0-10 VDC (PID) and 0-10 VDC (pressure/flow)
InputOverride dry contact
Current Usage100 mA max. material: UV-resistant polycarbonate UL94V-0
Mounting4 exterior holes for #10 screws
ComplianceIP66, NEMA 4
Voltage2-32 VDC, 18-28 VAC.
