DIV 23 · HVACAIR-MEASURING-PRODUCTSCUT SHEET INDEXED

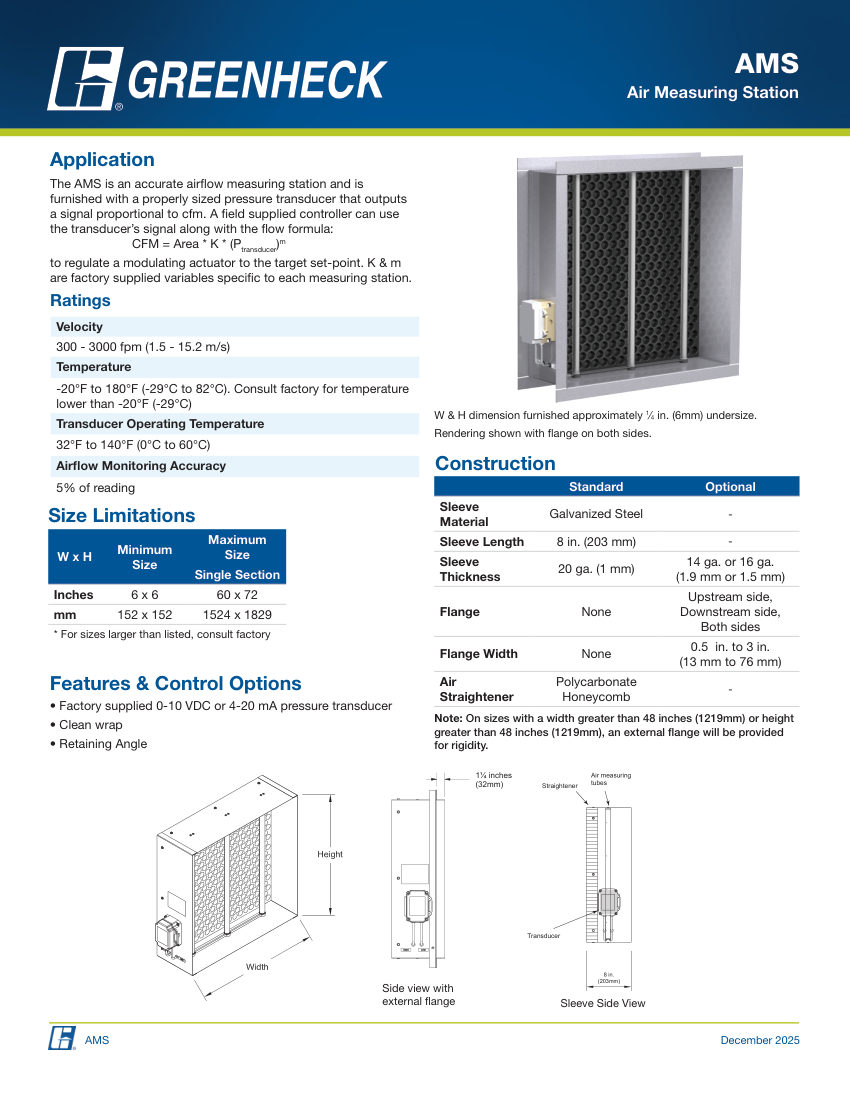

Greenheckams air measuring station

Name: Greenheck ams air measuring station
Brand: Greenheck
SKU: ams air measuring station

Greenheck Airflow measuring station. Model AMS. Velocity range: 300 - 3000 fpm (1.5 - 15.2 m/s)

Free to start · No card required · The agent pulls this cut sheet in automatically

Product details

Catalog number	ams air measuring station
Description	Greenheck Airflow measuring station. Model AMS. Velocity range: 300 - 3000 fpm (1.5 - 15.2 m/s)
Operating temperature	-20°F to 180°F (-29°C to 82°C); Transducer operating temperature: 32°F to 140°F (0°C to 60°C); Airflow monitoring accuracy: 5% of reading. material: Galvanized Steel
Connection size	6x6 in. to 60x72 in. (152x152 mm to 1524x1829 mm)
End connection	Flange (Optional)
Flow Rate	300 - 3000 fpm (1.5 - 15.2 m/s)
Dimensions	Sleeve Length: 8 in. (203 mm)
Voltage	0-10 VDC or 4-20 mA.
