DIV 23 · HVACDAMPERSCUT SHEET INDEXED

Greenheckbd-100 backdraft damperbd-100

Greenheck Backdraft Damper (Damper). Model BD-100. Frame material is 24 ga. (0.7 mm) galvanized steel; Blade material is 0.016 in. (0.41 mm) roll formed aluminum; Maximum operating temperature is 180°F (82°C); Air leakage is 39 cfm/ft² or less at 1.0 in. wg. material: Galvanized Steel Frame, Roll Formed Aluminum Blade

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFbd-100.pdfData sheet

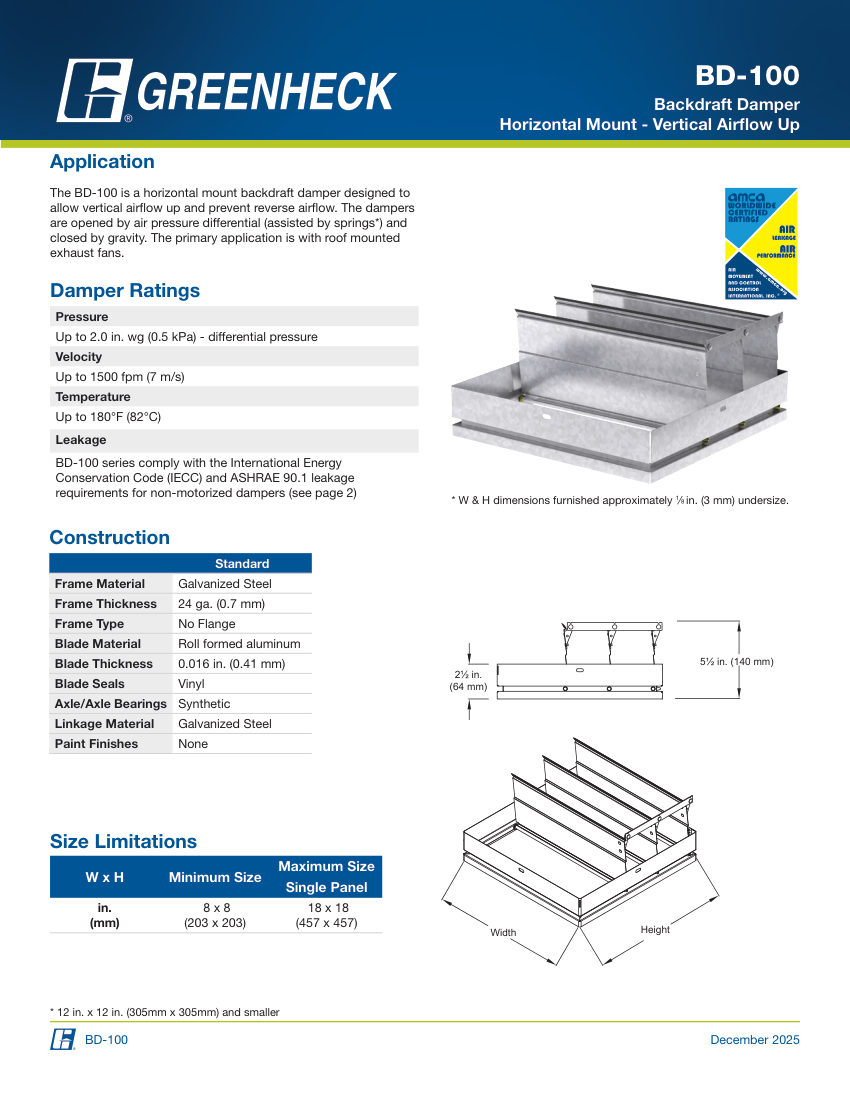

Greenheck bd-100 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Greenheck
Catalog no.
bd-100
Product type
Dampers
MasterFormat
23
Cut sheet
PDF · manufacturer current

Product details

Catalog numberbd-100
DescriptionGreenheck Backdraft Damper (Damper). Model BD-100. Frame material is 24 ga. (0.7 mm) galvanized steel; Blade material is 0.016 in. (0.41 mm) roll formed aluminum; Maximum operating temperature is 180°F (82°C); Air leakage is 39 cfm/ft² or less at 1.0 in. wg. material: Galvanized Steel Frame, Roll Formed Aluminum Blade
Connection size8x8 in. to 18x18 in. (203x203 mm to 457x457 mm)
End connectionNo Flange
Pressure RatingUp to 2.0 in. wg (0.5 kPa)
Flow RateUp to 1500 fpm (7 m/s)
FinishNone.
