Greenheckbd-90 backdraft damperbd-90

Greenheck Backdraft Damper (Dampers). Model BD-90. Frame material is 24 ga. galvanized steel; Blade material is roll formed aluminum with vinyl seals; Air leakage is 36 cfm/ft2 or less at 1.0 in. wg; Operating temperature up to 180°F (82°C). material: Galvanized Steel Frame, Aluminum Blade

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFbd-90.pdfData sheet

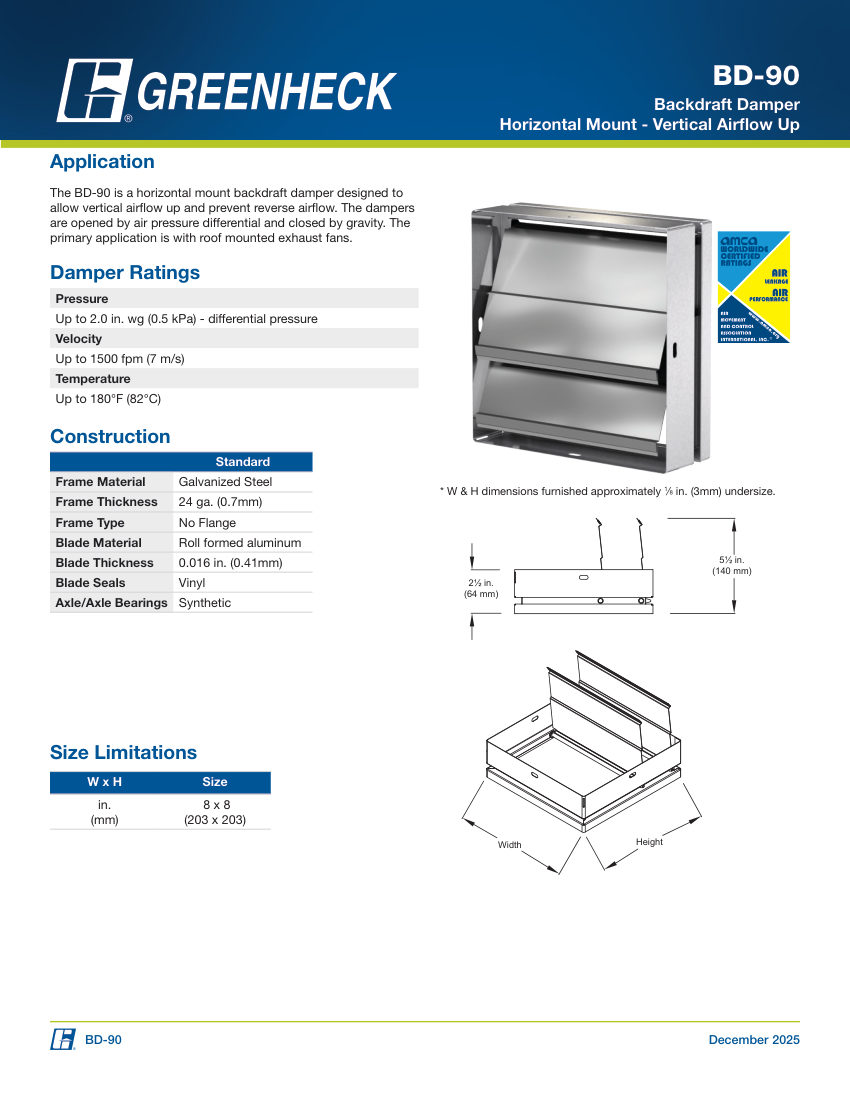

Greenheck bd-90 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Greenheck
Catalog no.
bd-90
Product type
Dampers
MasterFormat
23
Cut sheet
PDF · manufacturer current

Product details

Catalog numberbd-90
DescriptionGreenheck Backdraft Damper (Dampers). Model BD-90. Frame material is 24 ga. galvanized steel; Blade material is roll formed aluminum with vinyl seals; Air leakage is 36 cfm/ft2 or less at 1.0 in. wg; Operating temperature up to 180°F (82°C). material: Galvanized Steel Frame, Aluminum Blade
Connection size8x8 in. (203 x 203 mm)
End connectionNo Flange
Pressure RatingUp to 2.0 in. wg (0.5 kPa)
Flow RateUp to 1500 fpm (7 m/s)
MountingHorizontal Mount - Vertical Airflow Up.
