Greenheckbtdr-50 balancing damperbtdr-50

Greenheck Bowtie Damper (Balancing Damper). Model BTDR-50. Cable operated radial blade design; Maximum temperature rating 240°F (116°C); Adjustable via 1/4 in. (6 mm) nut driver or screwdriver; Diameter furnished approximately 1/4 in. (6 mm) undersize. material: Galvannealed Steel

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFbtdr-50.pdfData sheet

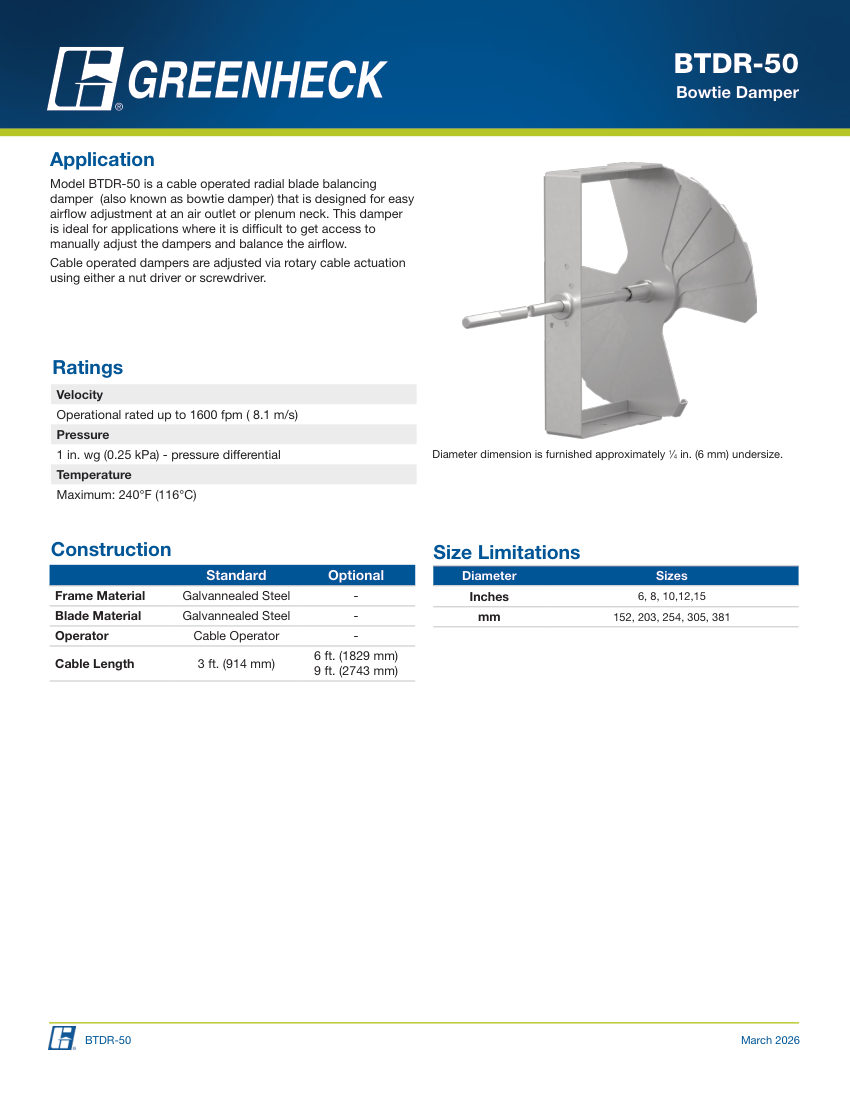

Greenheck btdr-50 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Greenheck
Catalog no.
btdr-50
Product type
Dampers
MasterFormat
23
Cut sheet
PDF · manufacturer current

Product details

Catalog numberbtdr-50
DescriptionGreenheck Bowtie Damper (Balancing Damper). Model BTDR-50. Cable operated radial blade design; Maximum temperature rating 240°F (116°C); Adjustable via 1/4 in. (6 mm) nut driver or screwdriver; Diameter furnished approximately 1/4 in. (6 mm) undersize. material: Galvannealed Steel
Connection size6, 8, 10, 12, 15 in (152, 203, 254, 305, 381 mm)
End connectionRound
Pressure Rating1 in. wg (0.25 kPa)
Flow Rate1600 fpm (8.1 m/s)
MountingCable operated.
