DIV 23 · HVACDAMPERSCUT SHEET INDEXED

Greenheckbubble tight supplement - hbt/hbtr series

Greenheck Bubble Tight Damper (Industrial Dampers). Model HBT/HBTR Series. All welded design with full perimeter silicone rubber sweep seal; Tested per AMCA 500D and ASME AG-1 for zero leakage; Operating temperature range: -40°F to 250°F (-40°C to 121°C); 2-position operation (fully open or fully closed), not for modulation. material: Painted steel, 304SS, 316SS

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFbubble-tight-supplement---hbt-hbtr-series.pdfData sheet

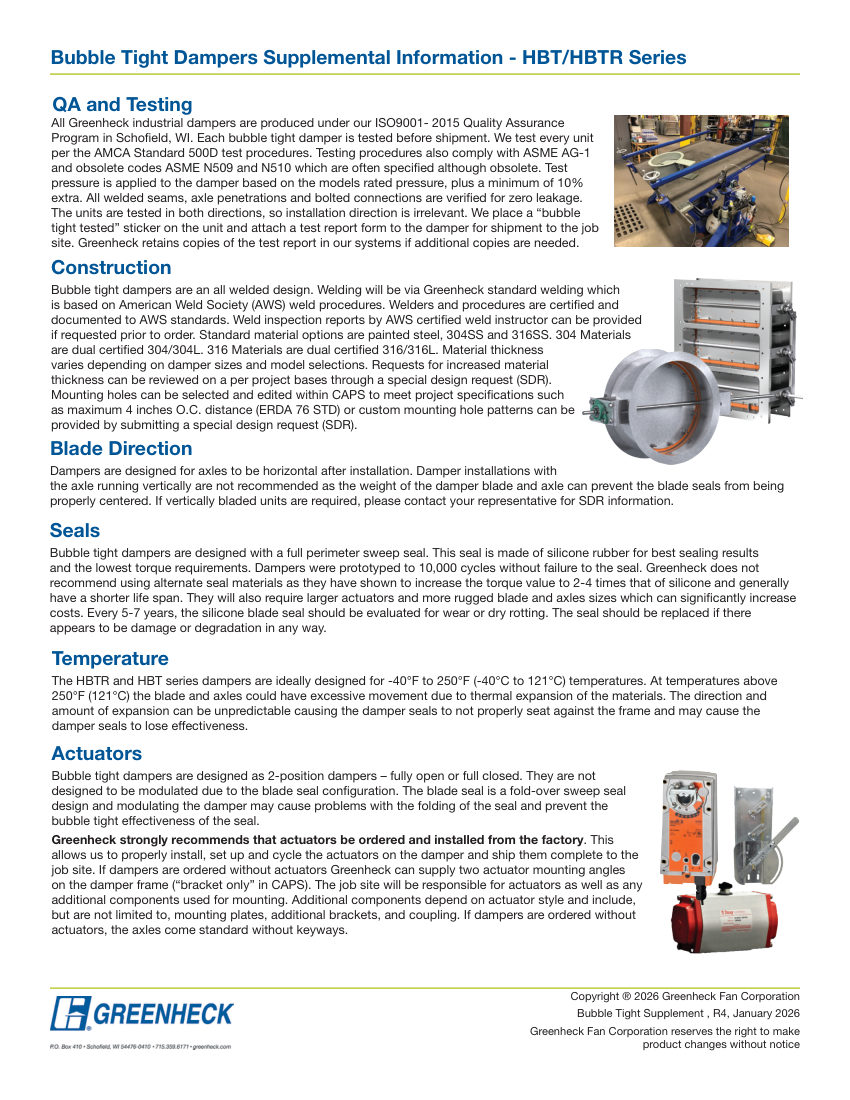

Greenheck bubble tight supplement - hbt/hbtr series cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Greenheck
Catalog no.
bubble tight supplement - hbt/hbtr series
Product type
Dampers
MasterFormat
23
Cut sheet
PDF · manufacturer current

Product details

Catalog numberbubble tight supplement - hbt/hbtr series
DescriptionGreenheck Bubble Tight Damper (Industrial Dampers). Model HBT/HBTR Series. All welded design with full perimeter silicone rubber sweep seal; Tested per AMCA 500D and ASME AG-1 for zero leakage; Operating temperature range: -40°F to 250°F (-40°C to 121°C); 2-position operation (fully open or fully closed), not for modulation. material: Painted steel, 304SS, 316SS
MountingHorizontal axle, mounting holes selectable (e.g., 4 inches O.C.)
ComplianceISO9001-2015, AMCA 500D, ASME AG-1, AWS.
