Greenheckcad-10, had-10 access doorcad-10
Greenheck Duct Access Door (Duct Access Doors). Model HAD-10, CAD-10. Rated for up to 4.5 in. (1.1 kPa) static pressure; Frame material is 24 ga. (0.7 mm) galvanized steel; Includes 1 in. (25 mm) fiberglass insulation; Features 1/2 in. (13 mm) wide dual gasket. material: Galvanized steel
Free to start · No card required · The agent pulls this cut sheet in automatically
- Manufacturer
- Greenheck
- Catalog no.
- cad-10
- Product type
- Dampers
- MasterFormat
- 23
- Cut sheet
- PDF · manufacturer current
Product details
| Catalog number | cad-10 |
|---|---|
| Description | Greenheck Duct Access Door (Duct Access Doors). Model HAD-10, CAD-10. Rated for up to 4.5 in. (1.1 kPa) static pressure; Frame material is 24 ga. (0.7 mm) galvanized steel; Includes 1 in. (25 mm) fiberglass insulation; Features 1/2 in. (13 mm) wide dual gasket. material: Galvanized steel |
| Pressure Rating | 4.5 in. w.c. (1.1 kPa) |
| Finish | Galvanized |
| Mounting | Peen or crimp mounting tabs |
| Dimensions | 6x6 in. to 24x24 in. (152x152 mm to 610x610 mm). |

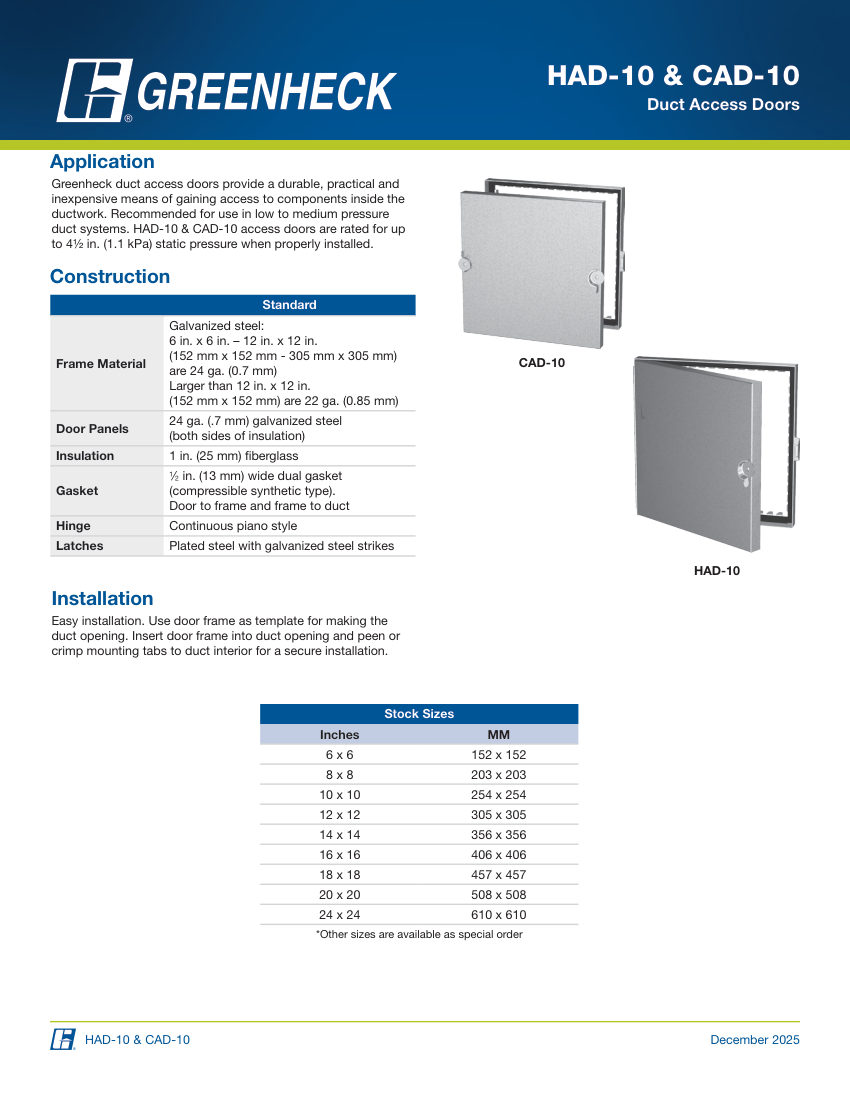

- Official cut sheet, indexed
