DIV 23 · HVACDAMPERSCUT SHEET INDEXED

Greenheckdfd-350 dynamic rated fire damperdfd-350

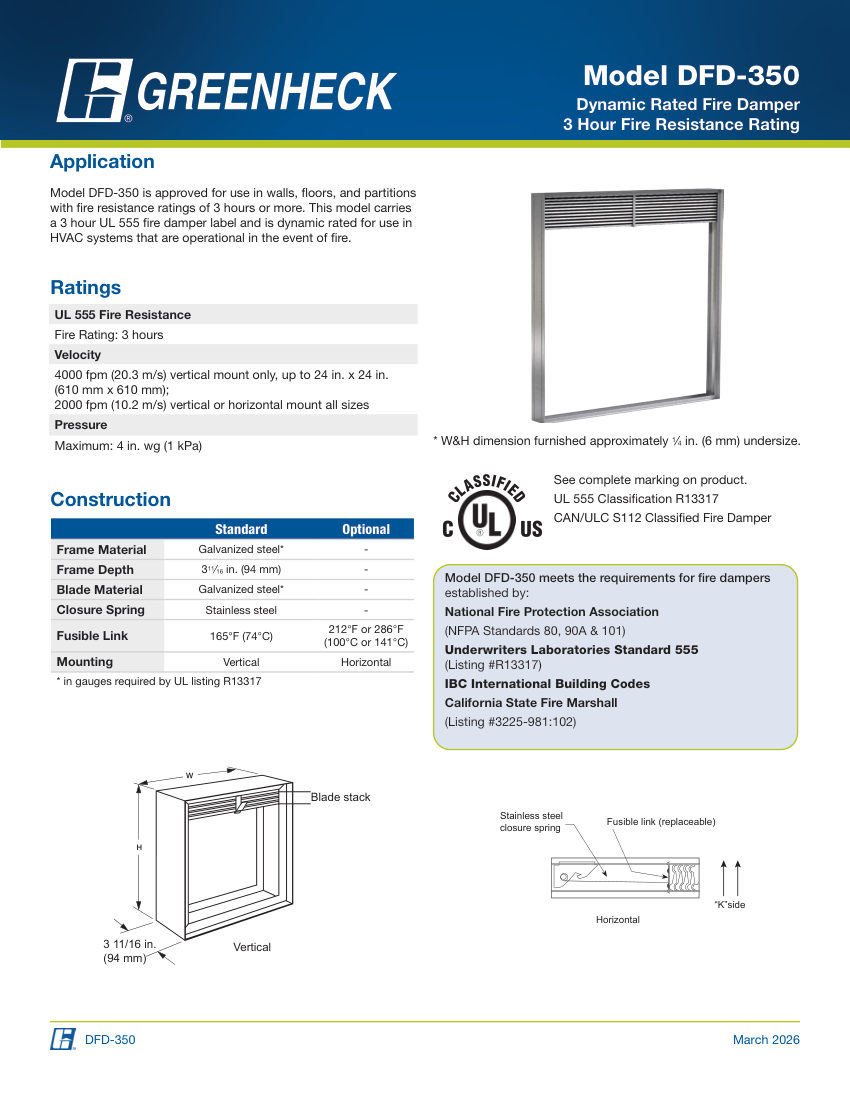

Name: Greenheck dfd-350 dynamic rated fire damper
Brand: Greenheck
SKU: dfd-350

Greenheck Dynamic Rated Fire Damper (Fire Damper). Model DFD-350. 3-hour fire resistance rating; Dynamic rated for operational HVAC systems

Free to start · No card required · The agent pulls this cut sheet in automatically

Product details

Catalog number	dfd-350
Description	Greenheck Dynamic Rated Fire Damper (Fire Damper). Model DFD-350. 3-hour fire resistance rating; Dynamic rated for operational HVAC systems
Fusible link options	165°F (74°C), 212°F (100°C), or 286°F (141°C); Approved for walls, floors, and partitions with 3-hour or more fire resistance. material: Galvanized steel frame and blades, stainless steel closure spring
Pressure Rating	Maximum 4 in. wg (1 kPa)
Flow Rate	4000 fpm (20.3 m/s) vertical mount only up to 24 in. x 24 in.; 2000 fpm (10.2 m/s) vertical or horizontal all sizes
Mounting	Vertical or Horizontal
Dimensions	Frame depth 3 11/1
