DIV 23 · HVACDAMPERSCUT SHEET INDEXED

Greenheckdfd series pressure drop data

Greenheck Damper (DFD Series). Model DFD Series. Pressure drop data tested per AMCA Standard 500-D; Data corrected for standard air density of 0.075 lb/ft³ (1.201 kg/m³); Available sizes include 12x12, 24x24, 36x36, 12x48, and 48x12 inches; Test configurations include Type A, Type B Transition, and Type C Transition. connectionSize: 12 in. x 12 in., 24 in. x 24 in., 36 in. x 36 in., 12 in. x 48 in., 48 in. x 12 in.

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFdfd-series-pressure-drop-data.pdfData sheet

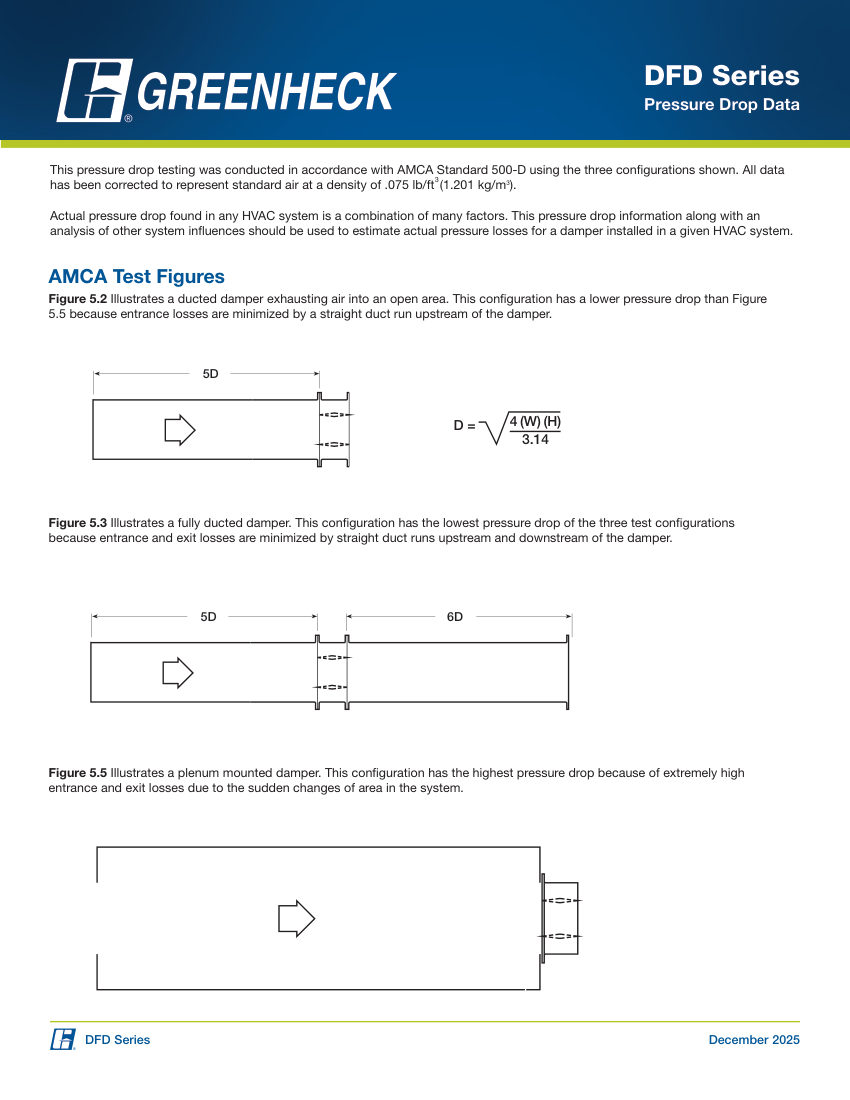

Greenheck dfd series pressure drop data cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Greenheck
Catalog no.
dfd series pressure drop data
Product type
Dampers
MasterFormat
23
Cut sheet
PDF · manufacturer current

Product details

Catalog numberdfd series pressure drop data
DescriptionGreenheck Damper (DFD Series). Model DFD Series. Pressure drop data tested per AMCA Standard 500-D; Data corrected for standard air density of 0.075 lb/ft³ (1.201 kg/m³); Available sizes include 12x12, 24x24, 36x36, 12x48, and 48x12 inches; Test configurations include Type A, Type B Transition, and Type C Transition. connectionSize: 12 in. x 12 in., 24 in. x 24 in., 36 in. x 36 in., 12 in. x 48 in., 48 in. x 12 in.
ComplianceAMCA Standard 500-D.
