DIV 23 · HVACDAMPERSCUT SHEET INDEXED

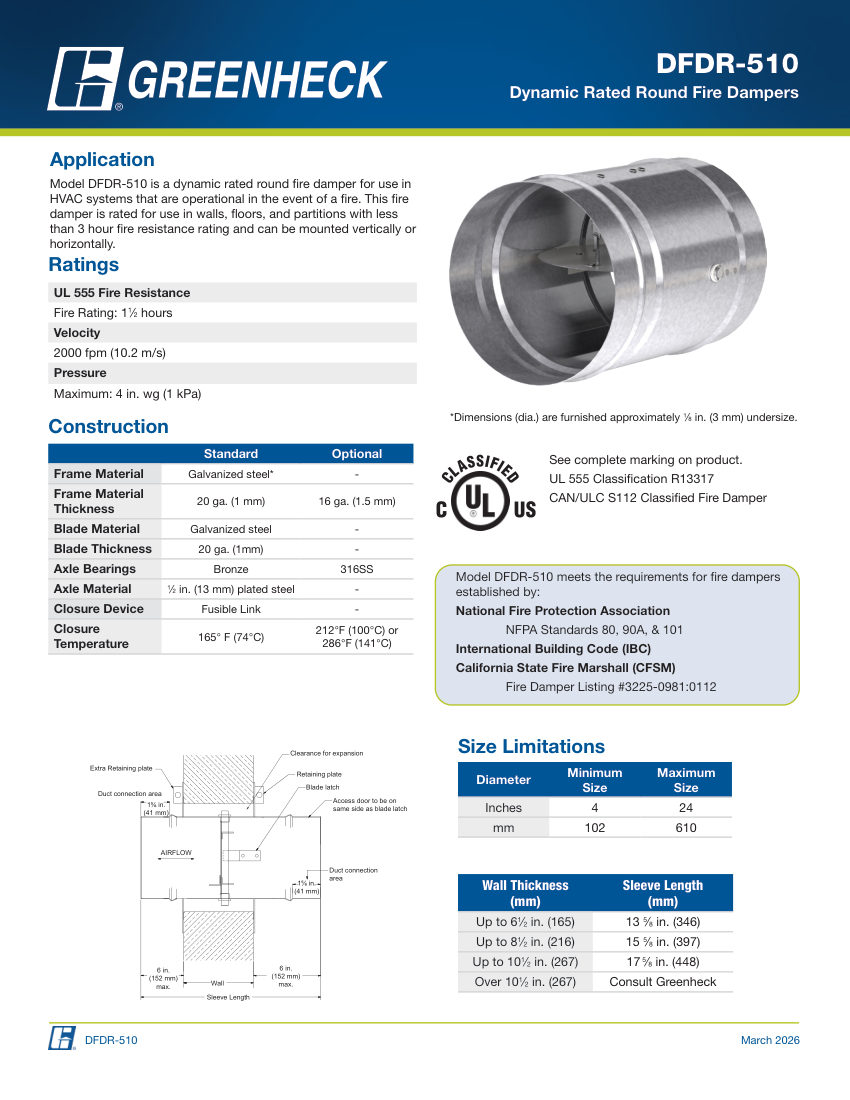

Greenheckdfdr-510 dynamic rated round fire dampersdfdr-510

Name: Greenheck dfdr-510 dynamic rated round fire dampers
Brand: Greenheck
SKU: dfdr-510

Greenheck Dynamic Rated Round Fire Damper (Fire Dampers). Model DFDR-510. UL 555 Fire Rating: 1 1/2 hours

Free to start · No card required · The agent pulls this cut sheet in automatically

Product details

Catalog number	dfdr-510
Description	Greenheck Dynamic Rated Round Fire Damper (Fire Dampers). Model DFDR-510. UL 555 Fire Rating: 1 1/2 hours
Closure Temperature	212°F (100°C) or 165°F (74°C) or 286°F (141°C)
Axle Bearings	Bronze (Standard) or 316SS (Optional)
Frame Thickness	20 ga. (1 mm) Standard, 16 ga. (1.5 mm) Optional. material: Galvanized steel frame and blades
Connection size	4 to 24 inches (102 to 610 mm) diameter
End connection	Round duct connection
Pressure Rating	Maximum 4 in. wg (1 kPa)
Flow Rate	2000 fpm (10.2 m/s)
Finish	Galvanized.
