DIV 08 · OPENINGSLOUVERSCUT SHEET INDEXED

Greenheckeac-401 operable louvereac-401

Greenheck Combination Louver/Damper (Louver). Model EAC-401. Drainable blade design positioned at 45 degrees; Wind load rating of 25 PSF (1.2 kPa); Temperature range -20°F to +180°F (-29°C to +82°C); Free area percentage of 39.6% for 48 in. x 48 in. size. material: Extruded 6063-T5 aluminum

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFeac-401.pdfData sheet

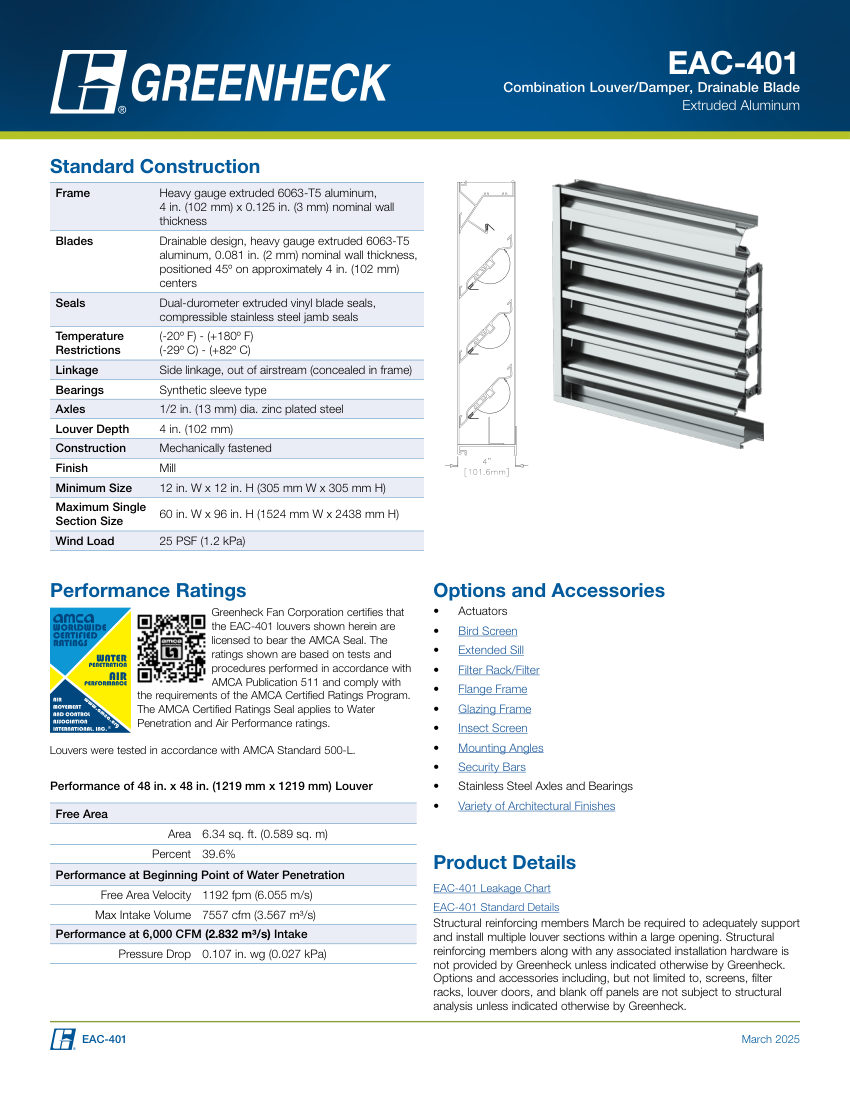

Greenheck eac-401 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Greenheck
Catalog no.
eac-401
Product type
Louvers
MasterFormat
08
Cut sheet
PDF · manufacturer current

Product details

Catalog numbereac-401
DescriptionGreenheck Combination Louver/Damper (Louver). Model EAC-401. Drainable blade design positioned at 45 degrees; Wind load rating of 25 PSF (1.2 kPa); Temperature range -20°F to +180°F (-29°C to +82°C); Free area percentage of 39.6% for 48 in. x 48 in. size. material: Extruded 6063-T5 aluminum
Flow Rate7557 cfm (3.567 m³/s) max intake volume
FinishMill
MountingMechanically fastened
DimensionsMin 12 in. W x 12 in. H; Max 60 in. W x 96 in. H; Depth 4 in.
ComplianceAMCA 500-L, AMCA 511.
