DIV 23 · HVACLOUVERSCUT SHEET INDEXED

Greenheckeac-601 operable louvereac-601

Greenheck Combination Louver/Damper (Louver). Model EAC-601. Drainable blade design positioned at 45 degrees; Wind load rating of 25 PSF (1.2 kPa); Temperature range of -20°F to +180°F (-29°C to +82°C); Free area of 46.3% for 48 in. x 48 in. size. material: Extruded 6063-T5 aluminum

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFeac-601.pdfData sheet

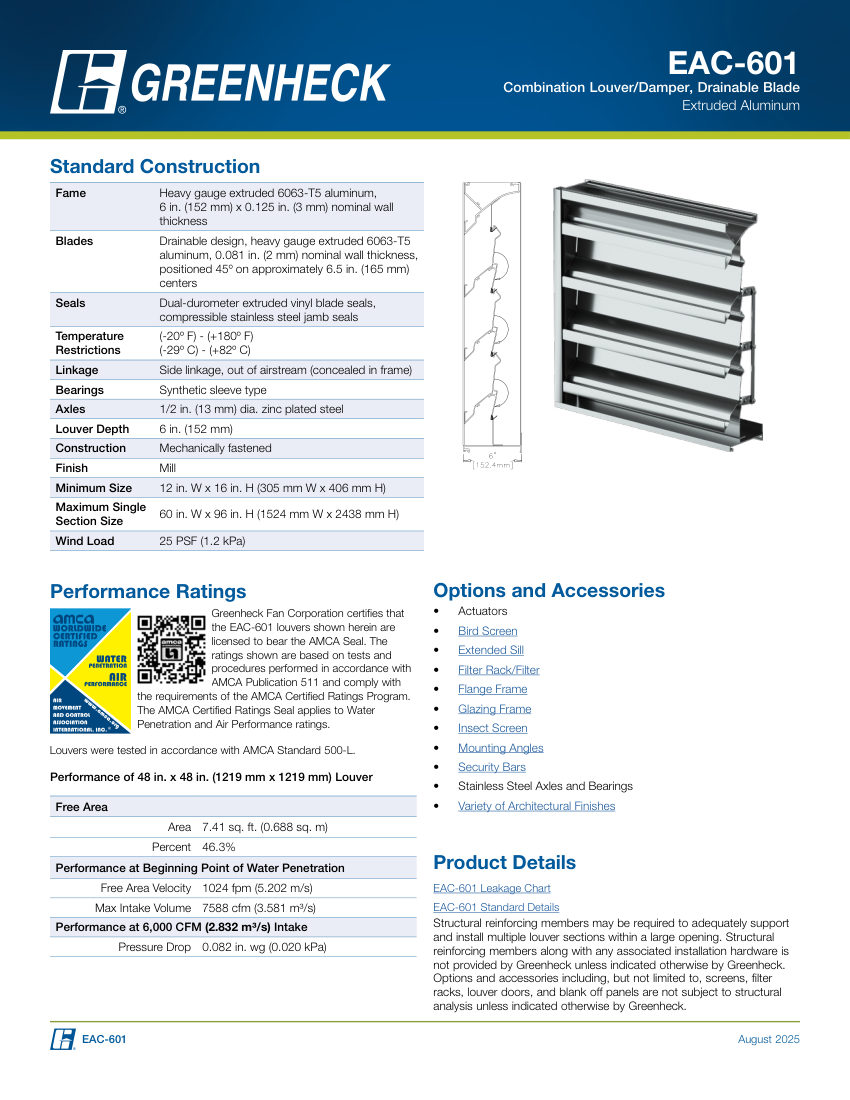

Greenheck eac-601 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Greenheck
Catalog no.
eac-601
Product type
Louvers
MasterFormat
23
Cut sheet
PDF · manufacturer current

Product details

Catalog numbereac-601
DescriptionGreenheck Combination Louver/Damper (Louver). Model EAC-601. Drainable blade design positioned at 45 degrees; Wind load rating of 25 PSF (1.2 kPa); Temperature range of -20°F to +180°F (-29°C to +82°C); Free area of 46.3% for 48 in. x 48 in. size. material: Extruded 6063-T5 aluminum
Flow Rate7588 cfm (3.581 m³/s) max intake volume
FinishMill
MountingMechanically fastened
DimensionsMin 12 in. W x 16 in. H; Max 60 in. W x 96 in. H; Depth 6 in.
ComplianceAMCA 500-L, AMCA 511.
