DIV 08 · OPENINGSLOUVERSCUT SHEET INDEXED

Greenheckeaca-601d hurricane louvereaca-601d

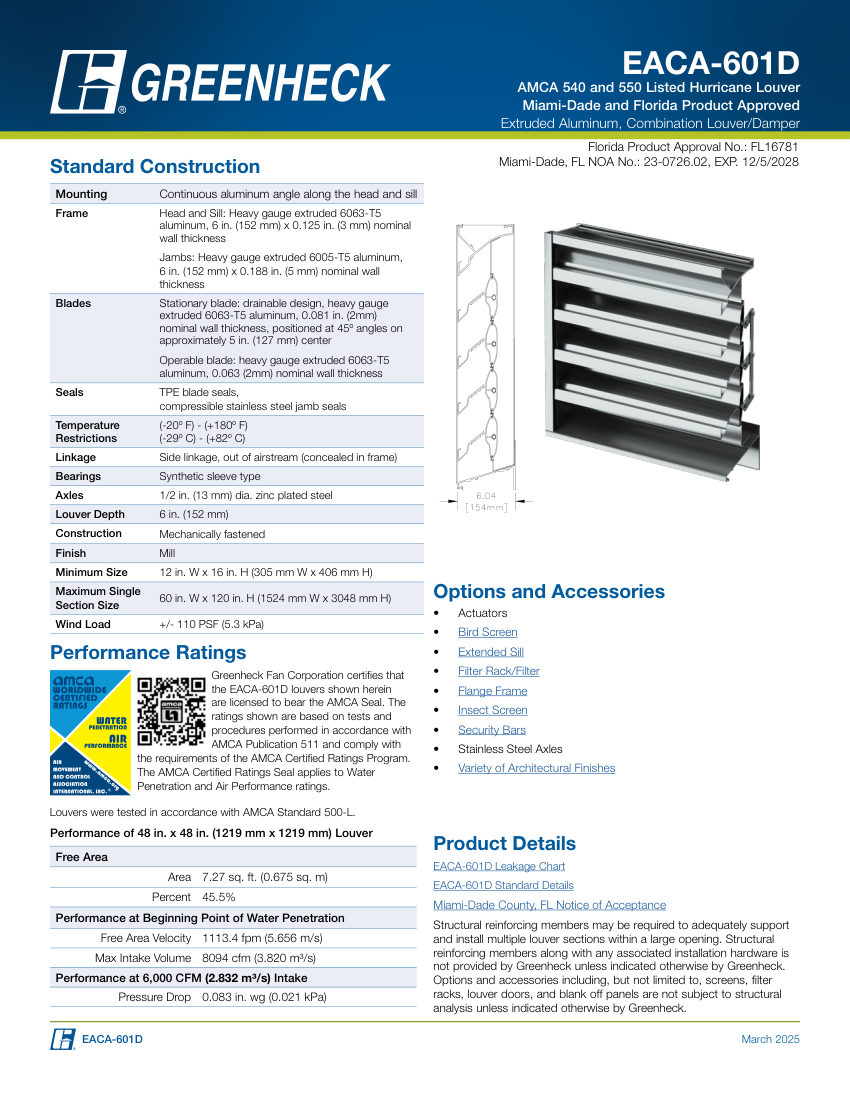

Name: Greenheck eaca-601d hurricane louver
Brand: Greenheck
SKU: eaca-601d

Greenheck Hurricane Louver (Louver). Model EACA-601D. Combination louver/damper with stationary and operable blades; Louver depth is 6 in. (152 mm)

Free to start · No card required · The agent pulls this cut sheet in automatically

Product details

Catalog number	eaca-601d
Description	Greenheck Hurricane Louver (Louver). Model EACA-601D. Combination louver/damper with stationary and operable blades; Louver depth is 6 in. (152 mm)
Temperature range	-20º F to +180º F (-29º C to +82º C); Blade seals are TPE; jamb seals are compressible stainless steel. material: Extruded Aluminum (6063-T5, 6005-T5)
Pressure Rating	+/- 110 PSF (5.3 kPa)
Flow Rate	8094 cfm (3.820 m³/s) max intake
Finish	Mill
Mounting	Continuous aluminum angle along head and sill
Dimensions	Min 12 in. W x 16 in. H; Max 60 in. W x 120 in. H.
