DIV 08 · OPENINGSLOUVERSCUT SHEET INDEXED

Greenheckeacc-601 operable louvereacc-601

Greenheck Combination Louver/Damper (Louver). Model EACC-601. Concealed actuator with side linkage out of airstream; Stationary blades positioned at 45 degrees; Free area 38.8% for 48 in. x 48 in. size; Pressure drop 0.117 in. wg at 6,000 CFM intake. material: Extruded 6063-T5 aluminum

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFeacc-601.pdfData sheet

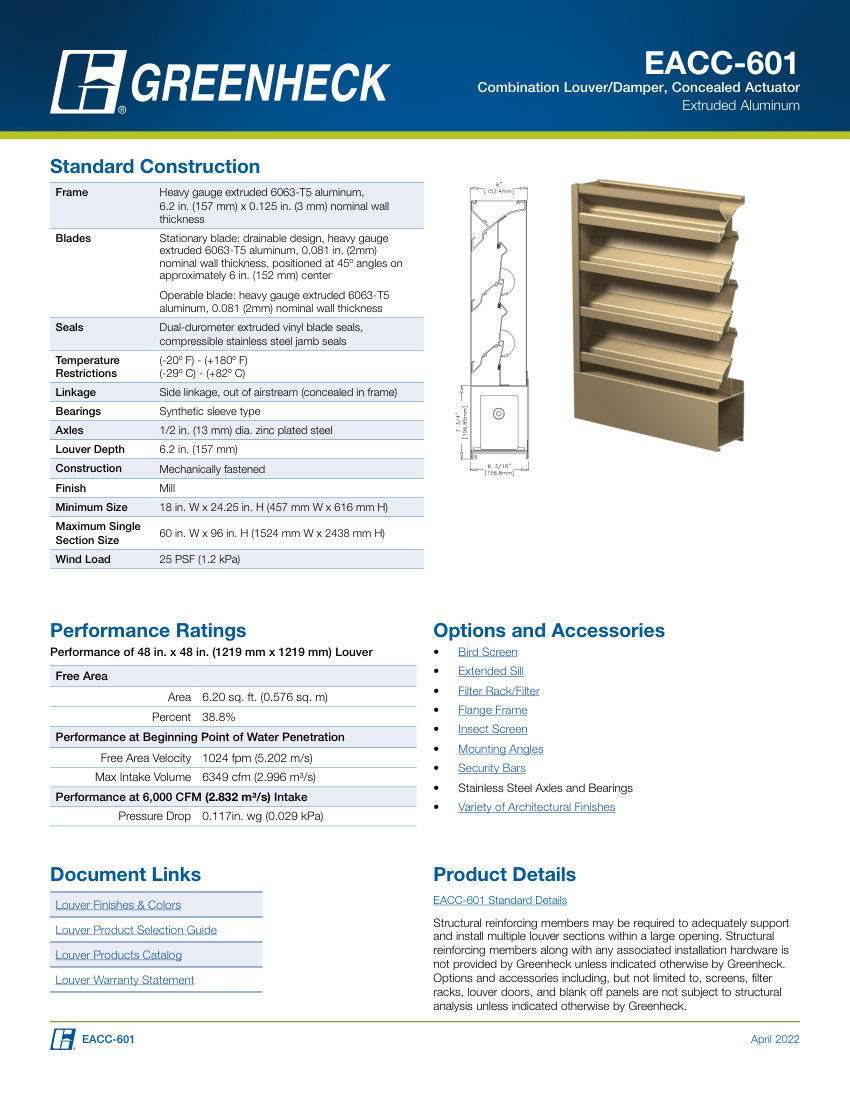

Greenheck eacc-601 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Greenheck
Catalog no.
eacc-601
Product type
Louvers
MasterFormat
08
Cut sheet
PDF · manufacturer current

Product details

Catalog numbereacc-601
DescriptionGreenheck Combination Louver/Damper (Louver). Model EACC-601. Concealed actuator with side linkage out of airstream; Stationary blades positioned at 45 degrees; Free area 38.8% for 48 in. x 48 in. size; Pressure drop 0.117 in. wg at 6,000 CFM intake. material: Extruded 6063-T5 aluminum
Pressure Rating25 PSF (1.2 kPa) wind load
Flow Rate6349 cfm (2.996 m³/s) max intake volume
FinishMill
MountingMechanically fastened
DimensionsMin 18 in. W x 24.25 in. H; Max 60 in. W x 96 in. H; Depth 6.2 in.
