Greenheck Adjustable Louver (Louver). Model EAD-632W. Drainable blade design with 32° positioning; Wind load rating of 25 PSF (1.2 kPa); Temperature range -20°F to +180°F (-29°C to +82°C); Free area percentage of 57.3% for 48x48 in. size. material: Extruded 6005-T5 aluminum

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFead-632w.pdfData sheet

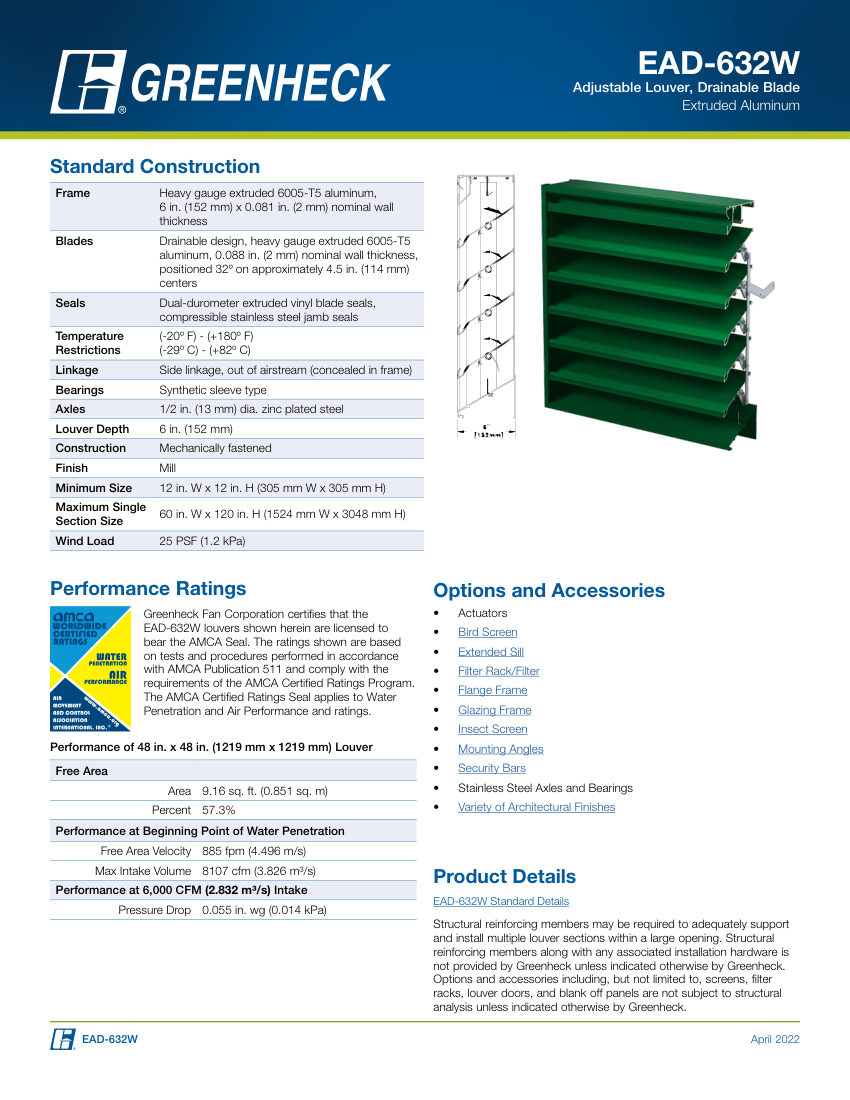

Greenheck ead-632w cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Greenheck
Catalog no.
ead-632w
Product type
Louvers
MasterFormat
23
Cut sheet
PDF · manufacturer current

Product details

Catalog numberead-632w
DescriptionGreenheck Adjustable Louver (Louver). Model EAD-632W. Drainable blade design with 32° positioning; Wind load rating of 25 PSF (1.2 kPa); Temperature range -20°F to +180°F (-29°C to +82°C); Free area percentage of 57.3% for 48x48 in. size. material: Extruded 6005-T5 aluminum
Flow Rate8107 cfm (3.826 m³/s) max intake volume
FinishMill
MountingMechanically fastened
DimensionsMin 12 in. W x 12 in. H; Max 60 in. W x 120 in. H; Depth 6 in.
ComplianceAMCA Certified Ratings Program.
