DIV 08 · OPENINGSLOUVERSCUT SHEET INDEXED

Greenheckead-635 operable louveread-635

Greenheck Adjustable Louver (Louver). Model EAD-635. Drainable blade design with 35-degree positioning; Blade wall thickness 0.081 in. (2 mm); Wind load rating 25 PSF (1.2 kPa); Temperature range -20°F to +180°F (-29°C to +82°C). material: Extruded 6063-T5 aluminum

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFead-635.pdfData sheet

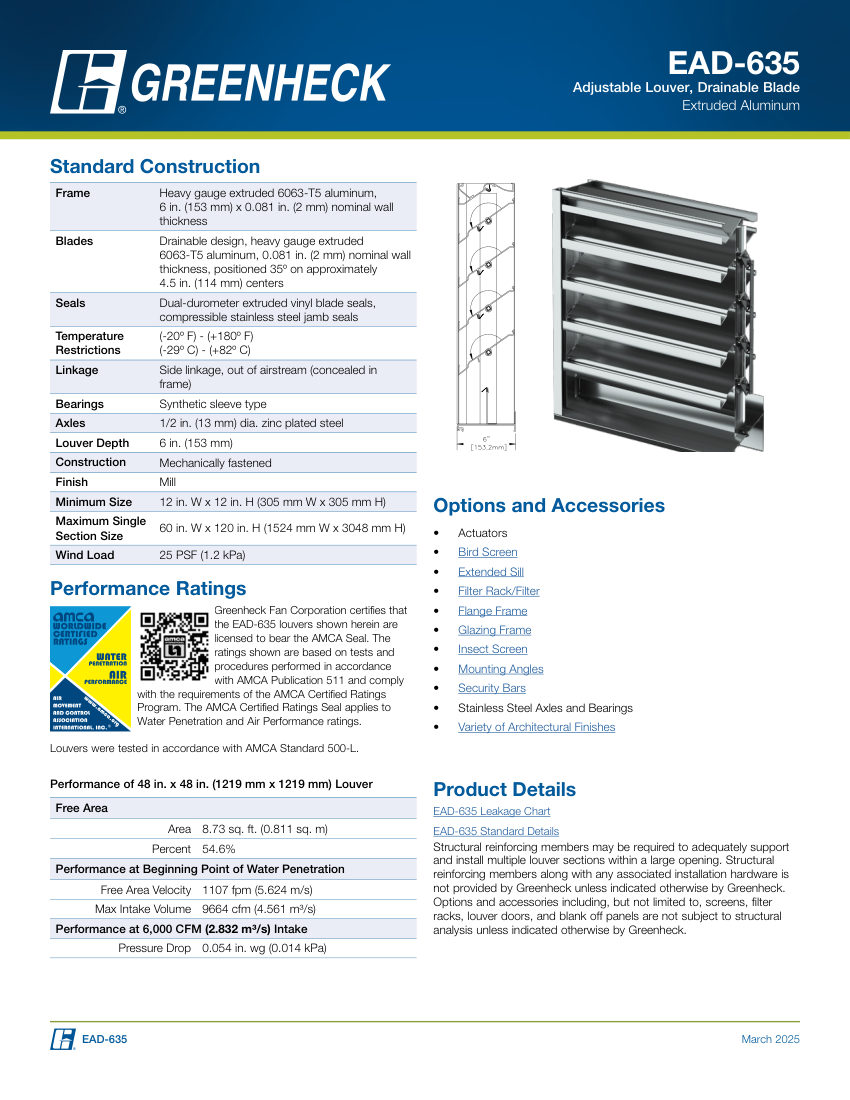

Greenheck ead-635 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Greenheck
Catalog no.
ead-635
Product type
Louvers
MasterFormat
08
Cut sheet
PDF · manufacturer current

Product details

Catalog numberead-635
DescriptionGreenheck Adjustable Louver (Louver). Model EAD-635. Drainable blade design with 35-degree positioning; Blade wall thickness 0.081 in. (2 mm); Wind load rating 25 PSF (1.2 kPa); Temperature range -20°F to +180°F (-29°C to +82°C). material: Extruded 6063-T5 aluminum
Flow Rate9664 cfm (4.561 m³/s) max intake volume
FinishMill
MountingMechanically fastened
DimensionsMin 12 in. W x 12 in. H; Max 60 in. W x 120 in. H; Depth 6 in.
ComplianceAMCA Certified Ratings Program.
