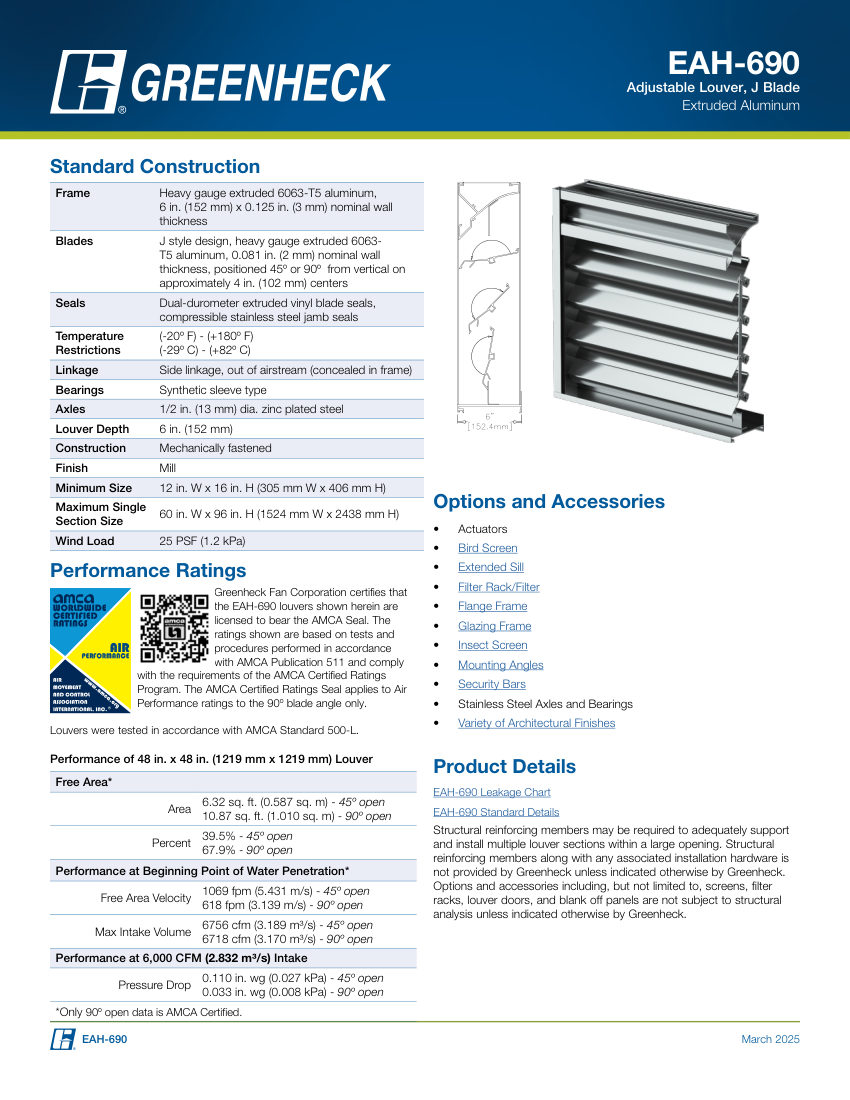

DIV 23 · HVACLOUVERSCUT SHEET INDEXED
Greenheckeah-690 operable louvereah-690
Greenheck Adjustable Louver (Louver). Model EAH-690. J-style blade design
Free to start · No card required · The agent pulls this cut sheet in automatically
- Manufacturer
- Greenheck
- Catalog no.
- eah-690
- Product type
- Louvers
- MasterFormat
- 23
- Cut sheet
- PDF · manufacturer current
Product details
| Catalog number | eah-690 |
|---|---|
| Description | Greenheck Adjustable Louver (Louver). Model EAH-690. J-style blade design |
| Blade seals | Dual-durometer extruded vinyl |
| Wind load rating | 25 PSF (1.2 kPa) |
| Temperature range | -20°F to +180°F. material: Extruded 6063-T5 Aluminum |
| Flow Rate | 6756 cfm (3.189 m³/s) at 45° open |
| Finish | Mill |
| Mounting | Mechanically fastened |
| Dimensions | Min 12 in. W x 16 in. H; Max 60 in. W x 96 in. H |
| Compliance | AMCA Certified. |
