Greenheckecd-601 operable louverecd-601
Greenheck Combination Louver/Damper (Louver). Model ECD-601. Drainable blade design with 37° and 45° positioning; Blade wall thickness 0.081 in. (2 mm); Temperature range -20°F to +180°F (-29°C to +82°C); Free area 45.8% for 48 in. x 48 in. size. material: Extruded 6063-T5 aluminum
Free to start · No card required · The agent pulls this cut sheet in automatically
- Manufacturer
- Greenheck
- Catalog no.
- ecd-601
- Product type
- Louvers
- MasterFormat
- 23

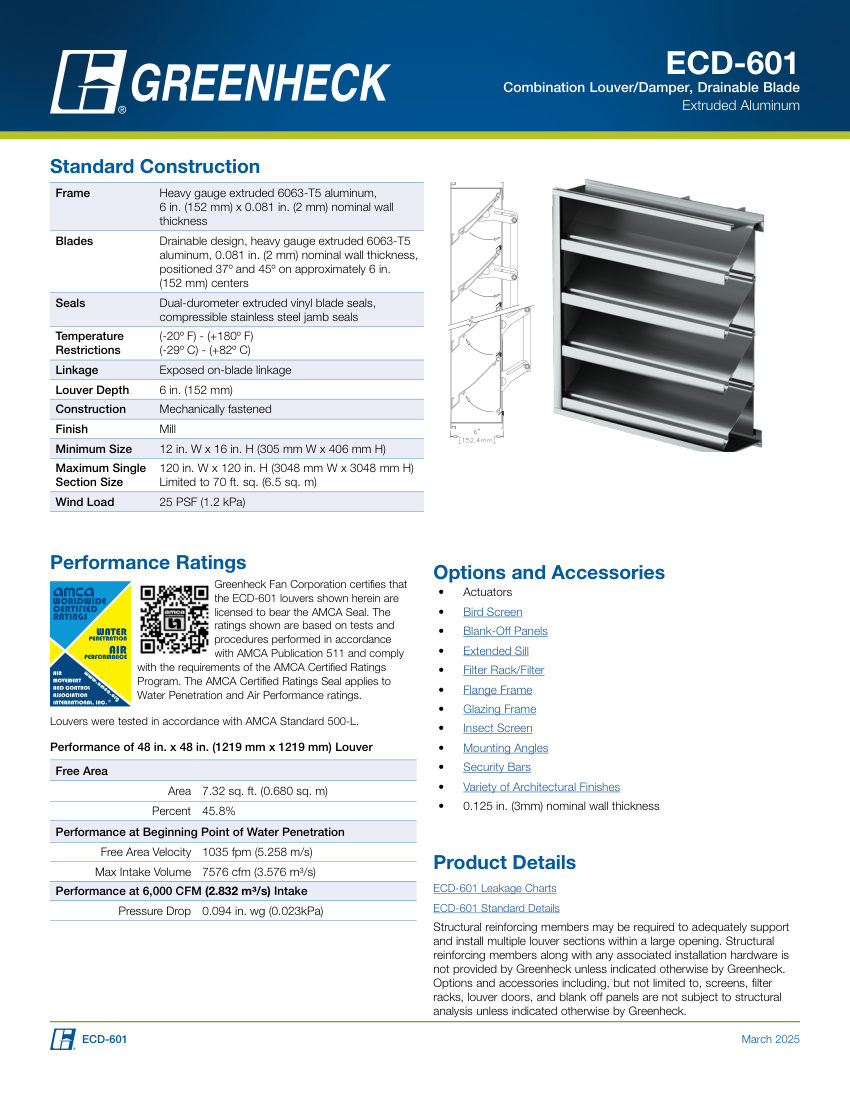

- Cut sheet
- PDF · manufacturer current
Product details
| Catalog number | ecd-601 |
|---|---|
| Description | Greenheck Combination Louver/Damper (Louver). Model ECD-601. Drainable blade design with 37° and 45° positioning; Blade wall thickness 0.081 in. (2 mm); Temperature range -20°F to +180°F (-29°C to +82°C); Free area 45.8% for 48 in. x 48 in. size. material: Extruded 6063-T5 aluminum |
| Pressure Rating | 25 PSF (1.2 kPa) Wind Load |
| Flow Rate | 7576 cfm (3.576 m³/s) Max Intake Volume |
| Finish | Mill |
| Mounting | Mechanically fastened |
| Dimensions | Min 12 in. W x 16 in. H; Max 120 in. W x 120 in. H; Depth 6 in. |
