DIV 23 · HVACLOUVERSCUT SHEET INDEXED

Greenheckedj-401 stationary louveredj-401

Greenheck Stationary Louver (Louver). Model EDJ-401. J-style blades positioned at 37° and 45° on 4 in. centers; Frame and blade wall thickness 0.081 in. (2 mm); Wind load rating 25 PSF (1.2 kPa); Free area percentage 52.0% (based on 48 in. x 48 in. test). material: Extruded 6063-T5 Aluminum

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFedj-401.pdfData sheet

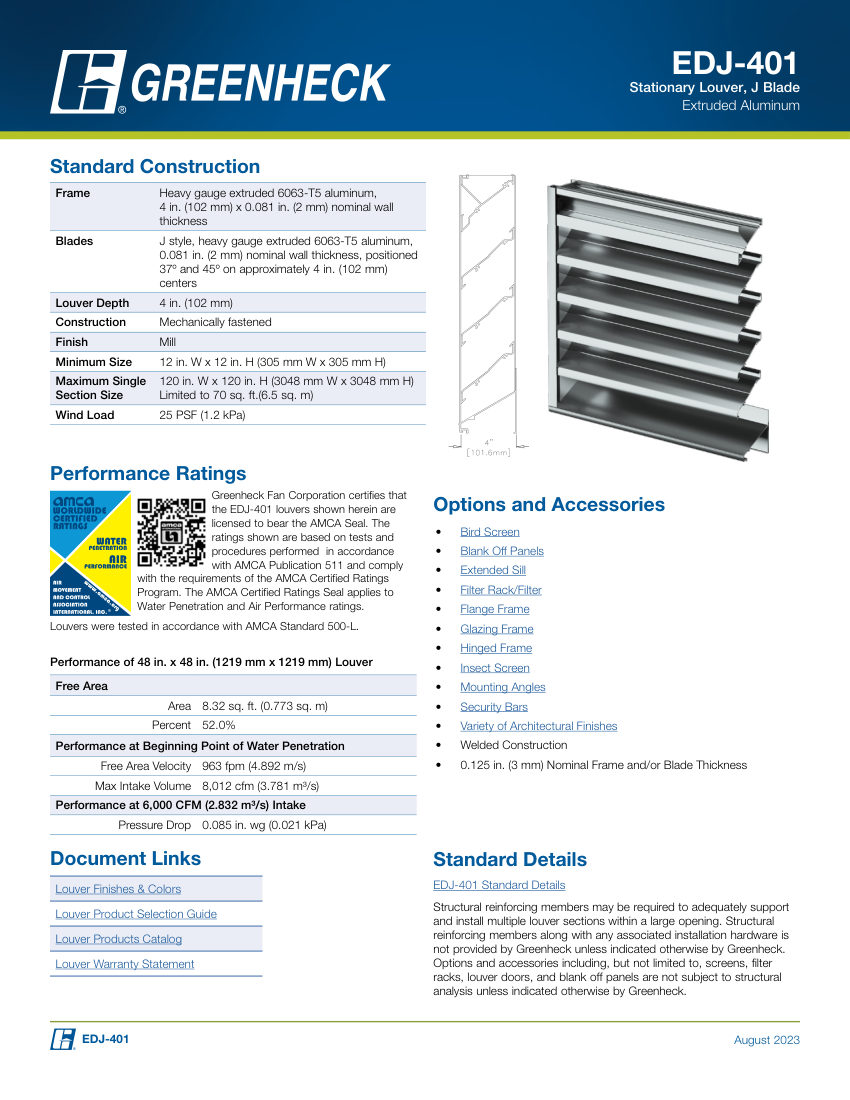

Greenheck edj-401 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Greenheck
Catalog no.
edj-401
Product type
Louvers
MasterFormat
23
Cut sheet
PDF · manufacturer current

Product details

Catalog numberedj-401
DescriptionGreenheck Stationary Louver (Louver). Model EDJ-401. J-style blades positioned at 37° and 45° on 4 in. centers; Frame and blade wall thickness 0.081 in. (2 mm); Wind load rating 25 PSF (1.2 kPa); Free area percentage 52.0% (based on 48 in. x 48 in. test). material: Extruded 6063-T5 Aluminum
Flow Rate8,012 cfm (3.781 m³/s) max intake volume
FinishMill
MountingMechanically fastened
DimensionsMin 12 in. W x 12 in. H; Max 120 in. W x 120 in. H; Depth 4 in.
ComplianceAMCA 500-L, AMCA 511.
