DIV 23 · HVACLOUVERSCUT SHEET INDEXED

Greenheckedj-601 stationary louveredj-601

Greenheck Stationary Louver (Louver). Model EDJ-601. J-style blades positioned at 37° and 45° on 6 in. centers; Frame wall thickness 0.063 in. (2 mm); Blade wall thickness 0.081 in. (2 mm); Free area percentage 54.3% (based on 48 in. x 48 in. test). material: Extruded 6063-T5 aluminum

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFedj-601.pdfData sheet

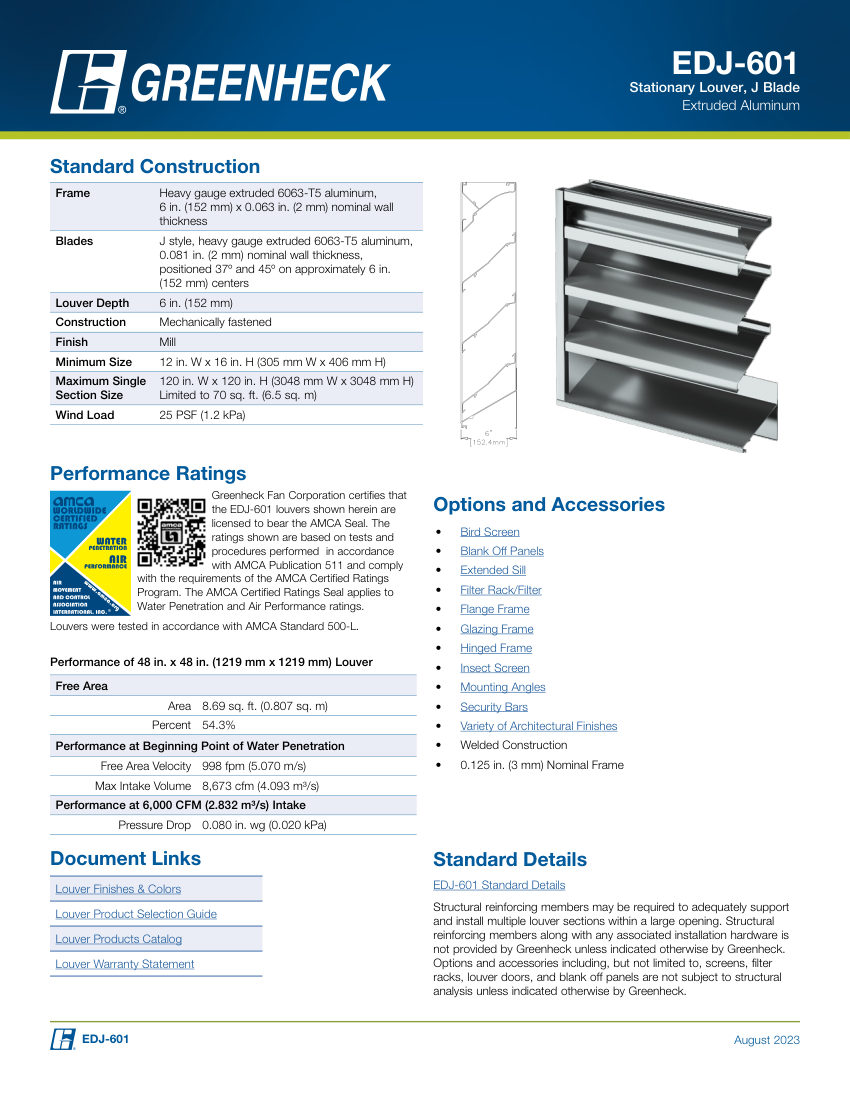

Greenheck edj-601 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Greenheck
Catalog no.
edj-601
Product type
Louvers
MasterFormat
23
Cut sheet
PDF · manufacturer current

Product details

Catalog numberedj-601
DescriptionGreenheck Stationary Louver (Louver). Model EDJ-601. J-style blades positioned at 37° and 45° on 6 in. centers; Frame wall thickness 0.063 in. (2 mm); Blade wall thickness 0.081 in. (2 mm); Free area percentage 54.3% (based on 48 in. x 48 in. test). material: Extruded 6063-T5 aluminum
Pressure Rating25 PSF (1.2 kPa) Wind Load
Flow Rate8,673 cfm (4.093 m³/s) Max Intake Volume
FinishMill
MountingMechanically fastened
DimensionsMin 12 in. W x 16 in. H; Max 120 in. W x 120 in. H; Depth 6 in.
