Greenheckedk-430 stationary louveredk-430

Greenheck Stationary Louver (Louver). Model EDK-430. K-style blades positioned at 30 degrees on 3 in. centers; Frame and blade wall thickness 0.081 in. (2 mm); Wind load rating 25 PSF (1.2 kPa); Free area percentage 55% (based on 48 in. x 48 in. test). material: Extruded 6063-T5 Aluminum

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFedk-430.pdfData sheet

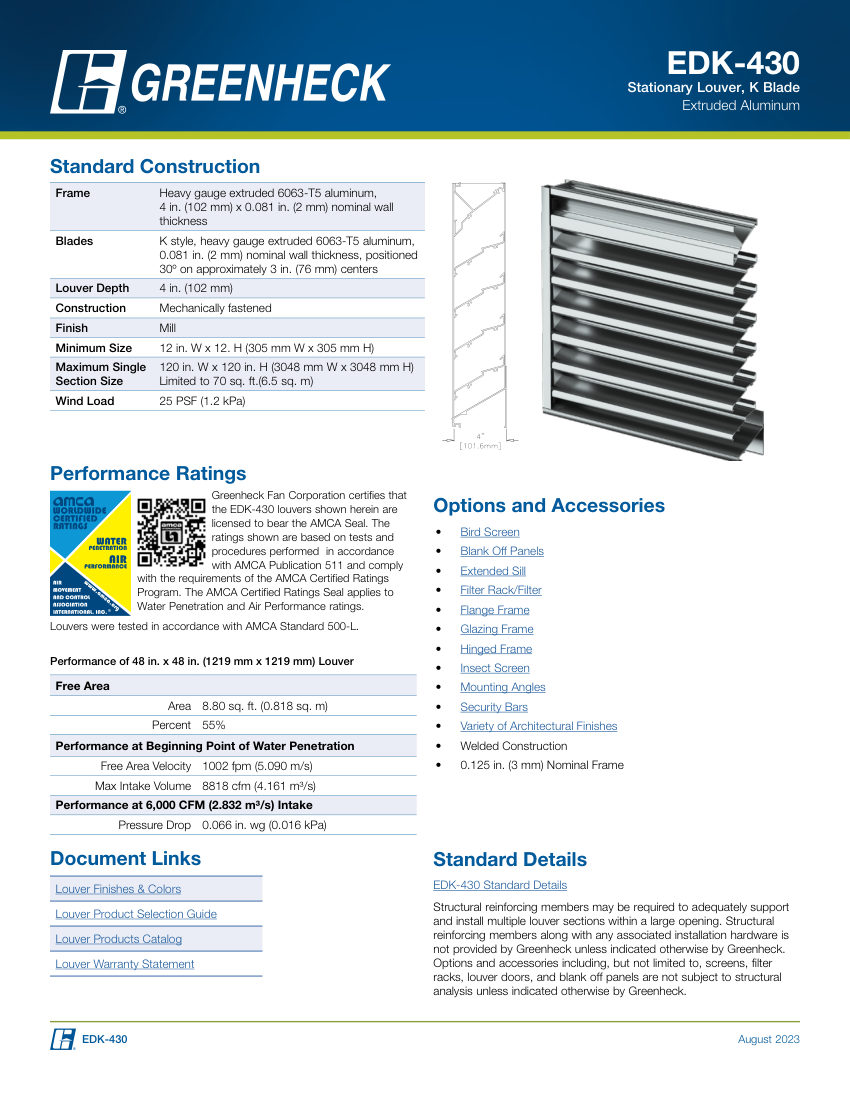

Greenheck edk-430 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Greenheck
Catalog no.
edk-430
Product type
Louvers
MasterFormat
23
Cut sheet
PDF · manufacturer current

Product details

Catalog numberedk-430
DescriptionGreenheck Stationary Louver (Louver). Model EDK-430. K-style blades positioned at 30 degrees on 3 in. centers; Frame and blade wall thickness 0.081 in. (2 mm); Wind load rating 25 PSF (1.2 kPa); Free area percentage 55% (based on 48 in. x 48 in. test). material: Extruded 6063-T5 Aluminum
Flow Rate8818 cfm (4.161 m³/s) max intake volume
FinishMill
MountingMechanically fastened
DimensionsMin 12 in. W x 12 in. H; Max 120 in. W x 120 in. H; Depth 4 in.
ComplianceAMCA Certified Ratings Program.
  • Official cut sheet, indexed
  • Auto-matched to your schedule
  • Cover + TOC, one click
