DIV 08 · OPENINGSLOUVERSCUT SHEET INDEXED

Greenheckehh-201 wind driven rain louverehh-201

Greenheck Wind-Driven Rain Louver (Louver). Model EHH-201. Horizontal blade design with 2 in. (51 mm) louver depth; Blades positioned on approximately 1 in. (25 mm) centers; Wind load rating of 25 PSF (1.2 kPa); Free area of 38.9% for 48 in. x 48 in. section. material: Extruded 6063-T5 aluminum

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFehh-201.pdfData sheet

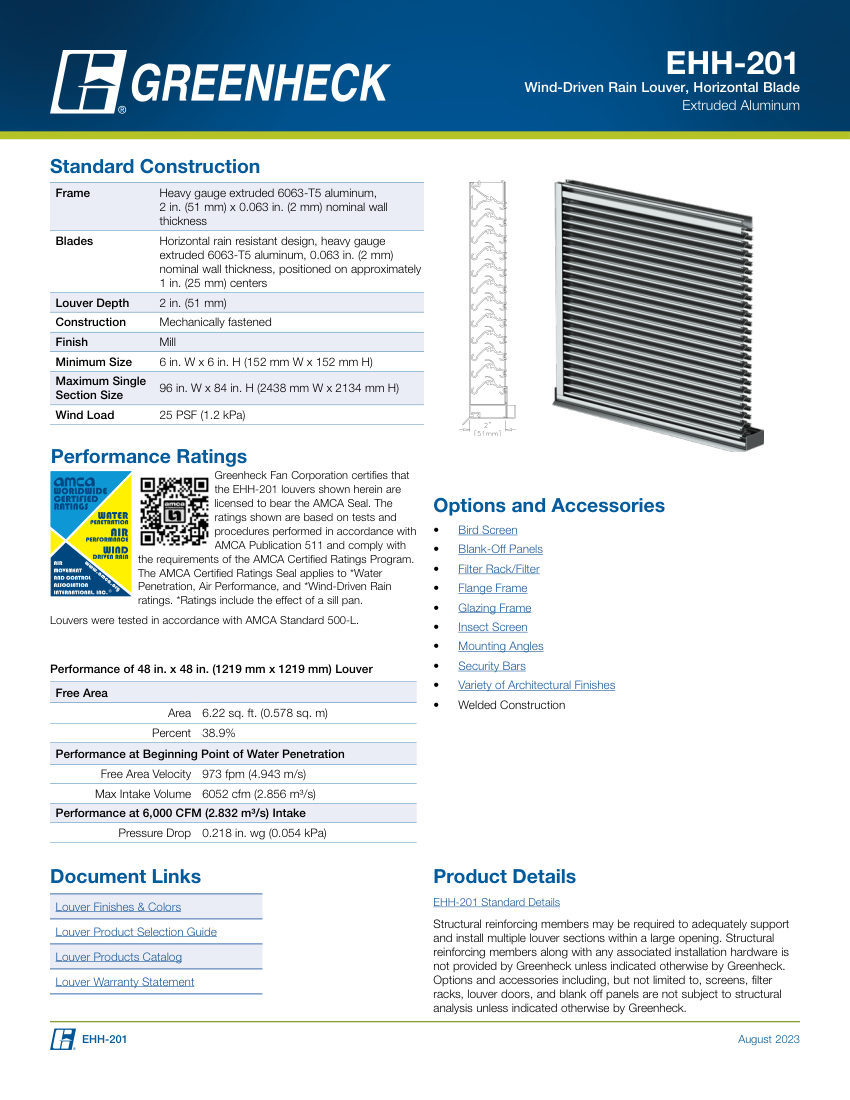

Greenheck ehh-201 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Greenheck
Catalog no.
ehh-201
Product type
Louvers
MasterFormat
08
Cut sheet
PDF · manufacturer current

Product details

Catalog numberehh-201
DescriptionGreenheck Wind-Driven Rain Louver (Louver). Model EHH-201. Horizontal blade design with 2 in. (51 mm) louver depth; Blades positioned on approximately 1 in. (25 mm) centers; Wind load rating of 25 PSF (1.2 kPa); Free area of 38.9% for 48 in. x 48 in. section. material: Extruded 6063-T5 aluminum
Flow Rate6052 cfm (2.856 m³/s) max intake volume
FinishMill
MountingMechanically fastened
DimensionsMin 6 in. W x 6 in. H; Max 96 in. W x 84 in. H
ComplianceAMCA Certified Ratings.
  • Official cut sheet, indexed
  • Auto-matched to your schedule
  • Cover + TOC, one click
