Greenheckehh-401 wind driven rain louverehh-401

Greenheck Wind-Driven Rain Louver (Louver). Model EHH-401. Horizontal blade design with 2 in. (51 mm) centers; Wind load rating of 25 PSF (1.2 kPa); Free area of 42.3% for 48 in. x 48 in. size; Pressure drop of 0.146 in. wg at 6,000 CFM intake. material: Extruded 6063-T5 aluminum

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFehh-401.pdfData sheet

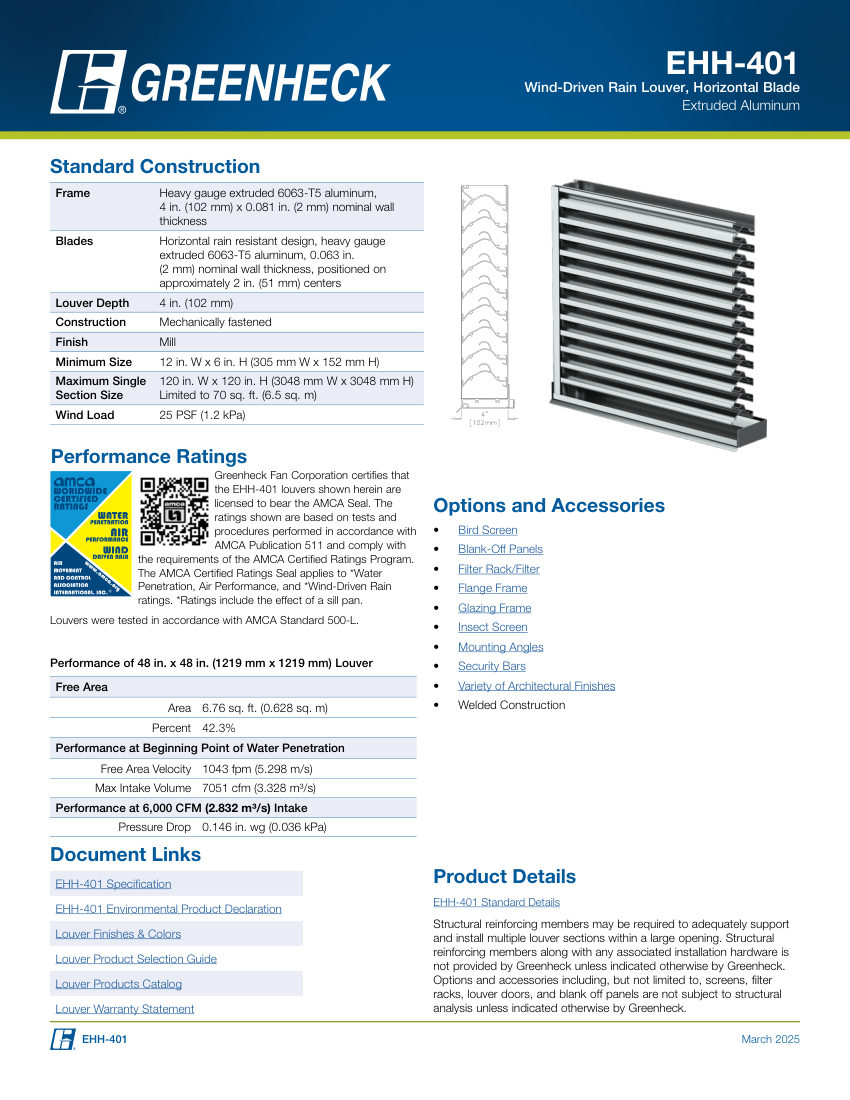

Greenheck ehh-401 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Greenheck
Catalog no.
ehh-401
Product type
Louvers
MasterFormat
23
Cut sheet
PDF · manufacturer current

Product details

Catalog numberehh-401
DescriptionGreenheck Wind-Driven Rain Louver (Louver). Model EHH-401. Horizontal blade design with 2 in. (51 mm) centers; Wind load rating of 25 PSF (1.2 kPa); Free area of 42.3% for 48 in. x 48 in. size; Pressure drop of 0.146 in. wg at 6,000 CFM intake. material: Extruded 6063-T5 aluminum
Flow Rate7051 cfm (3.328 m³/s) max intake volume
FinishMill
MountingMechanically fastened
DimensionsMin 12 in. W x 6 in. H; Max 120 in. W x 120 in. H; Depth 4 in.
ComplianceAMCA Certified Ratings Program.
