DIV 08 · OPENINGSLOUVERSCUT SHEET INDEXED

Greenheckehh-501x hurricane louverehh-501x

Greenheck Hurricane Louver (Louver). Model EHH-501X. Louver depth is 5 in. (127 mm); Blades are horizontal, rain-resistant, positioned on approx. 2 in. (51 mm) centers; Free area is 42.5% for a 48 in. x 48 in. louver; Pressure drop is 0.112 in. wg (0.028 kPa) at 6,000 CFM intake. material: Extruded 6063-T5 Aluminum

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFehh-501x.pdfData sheet

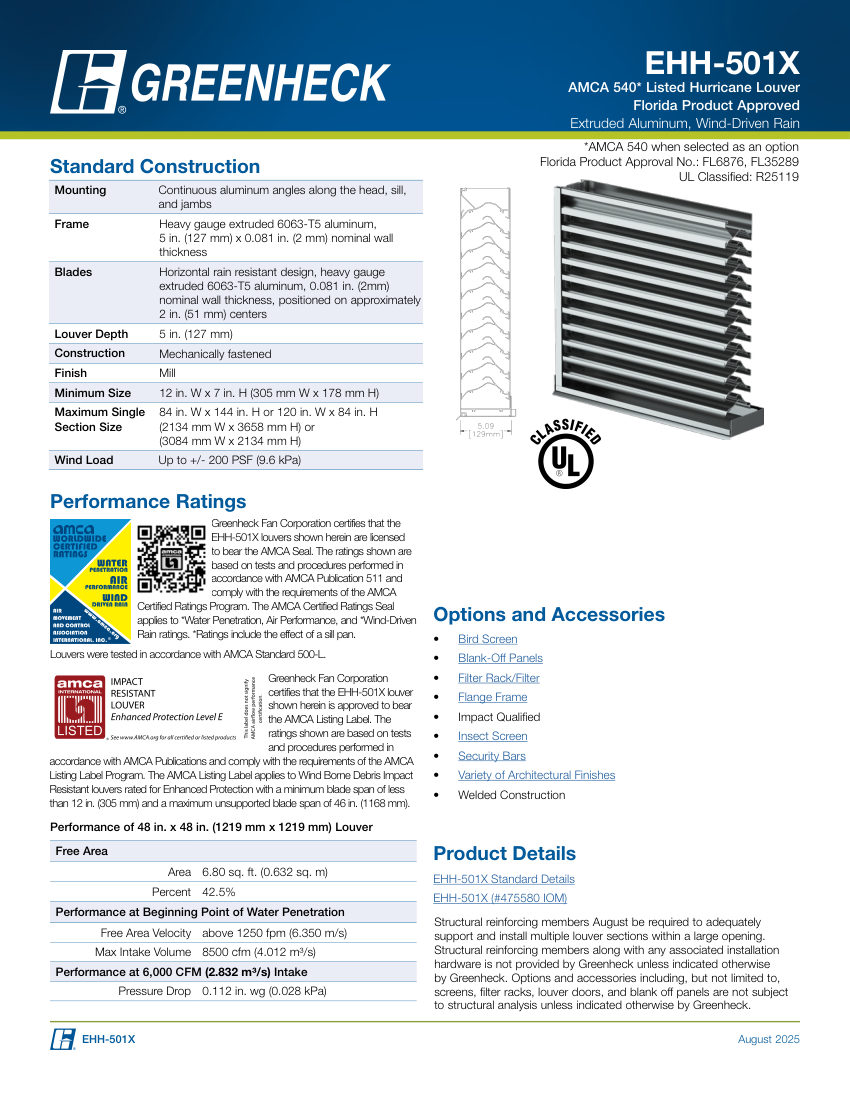

Greenheck ehh-501x cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Greenheck
Catalog no.
ehh-501x
Product type
Louvers
MasterFormat
08
Cut sheet
PDF · manufacturer current

Product details

Catalog numberehh-501x
DescriptionGreenheck Hurricane Louver (Louver). Model EHH-501X. Louver depth is 5 in. (127 mm); Blades are horizontal, rain-resistant, positioned on approx. 2 in. (51 mm) centers; Free area is 42.5% for a 48 in. x 48 in. louver; Pressure drop is 0.112 in. wg (0.028 kPa) at 6,000 CFM intake. material: Extruded 6063-T5 Aluminum
Pressure RatingUp to +/- 200 PSF (9.6 kPa)
Flow RateMax Intake Volume 8500 cfm (4.012 m³/s)
FinishMill
MountingContinuous aluminum angles along the head, sill, and jambs
DimensionsMin: 12 in. W x 7 in. H
Max Single Section84 in. W x 144 in. H or 120 in. W x 84 in. H.
