Greenheckehh-601 wind driven rain louverehh-601

Greenheck Wind-Driven Rain Louver (Louver). Model EHH-601. Horizontal blade design with 2 in. (51 mm) centers; Wind load rating of 25 PSF (1.2 kPa); Free area of 47.4% for 48 in. x 48 in. size; Pressure drop of 0.130 in. wg at 6,000 CFM intake. material: Extruded 6063-T5 aluminum

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFehh-601.pdfData sheet

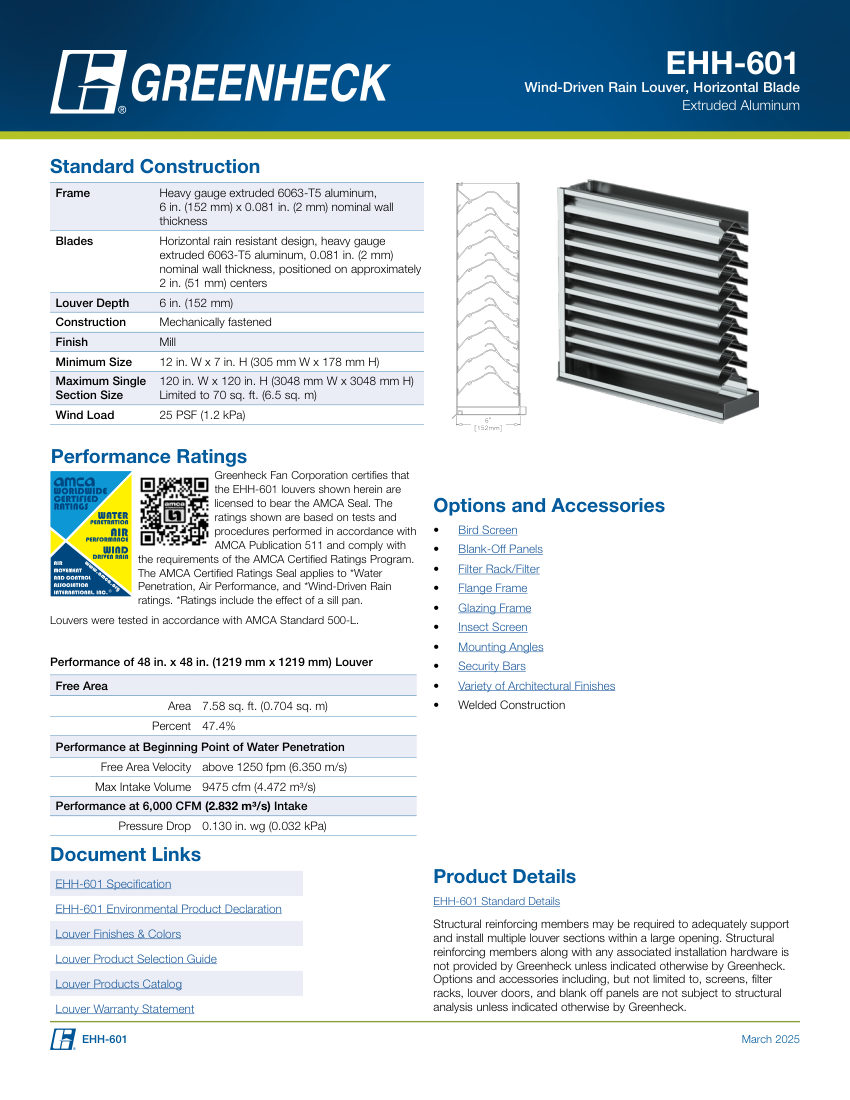

Greenheck ehh-601 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Greenheck
Catalog no.
ehh-601
Product type
Louvers
MasterFormat
08
Cut sheet
PDF · manufacturer current

Product details

Catalog numberehh-601
DescriptionGreenheck Wind-Driven Rain Louver (Louver). Model EHH-601. Horizontal blade design with 2 in. (51 mm) centers; Wind load rating of 25 PSF (1.2 kPa); Free area of 47.4% for 48 in. x 48 in. size; Pressure drop of 0.130 in. wg at 6,000 CFM intake. material: Extruded 6063-T5 aluminum
Flow Rate9475 cfm (4.472 m³/s) max intake volume
FinishMill
MountingMechanically fastened
DimensionsMin 12 in. W x 7 in. H; Max 120 in. W x 120 in. H; Depth 6 in.
ComplianceAMCA Certified Ratings Program (AMCA 500-L).
