DIV 23 · HVACLOUVERSCUT SHEET INDEXED

Greenheckehh-601d hurricane louverehh-601d

Greenheck Hurricane Louver (Louver). Model EHH-601D. Louver depth is 6 in. (152 mm); Blades are horizontal rain resistant design on 2 in. (51 mm) centers; Free area is 44.9% for a 48 in. x 48 in. louver; Pressure drop is 0.157 in. wg (0.030 kPa) at 6,000 CFM intake. material: Extruded 6063-T5 Aluminum

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFehh-601d.pdfData sheet

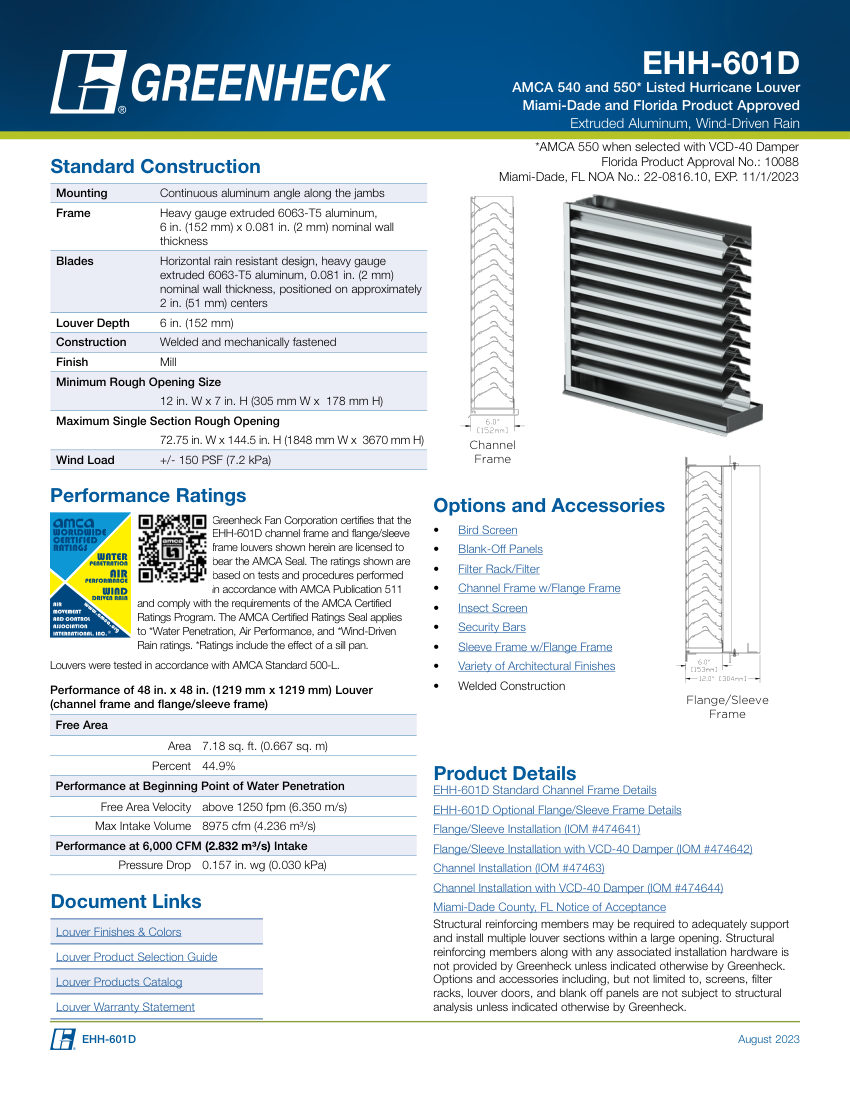

Greenheck ehh-601d cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Greenheck
Catalog no.
ehh-601d
Product type
Louvers
MasterFormat
23
Cut sheet
PDF · manufacturer current

Product details

Catalog numberehh-601d
DescriptionGreenheck Hurricane Louver (Louver). Model EHH-601D. Louver depth is 6 in. (152 mm); Blades are horizontal rain resistant design on 2 in. (51 mm) centers; Free area is 44.9% for a 48 in. x 48 in. louver; Pressure drop is 0.157 in. wg (0.030 kPa) at 6,000 CFM intake. material: Extruded 6063-T5 Aluminum
Pressure Rating+/- 150 PSF (7.2 kPa)
Flow Rate8975 cfm (4.236 m³/s) Max Intake Volume
FinishMill
MountingContinuous aluminum angle along the jambs
DimensionsMin Rough Opening: 12 in. W x 7 in. H
Max Single Section72.75 in. W x 144.5 in. H.
