Greenheckehh-601de hurricane louverehh-601de
Greenheck Hurricane Louver (Louver). Model EHH-601DE. Wind-Driven Rain resistant; Louver depth 6 in. (152 mm); Blades positioned on approx 2 in. (51 mm) centers; Free area 47.4% for 48x48 in. size. material: Extruded 6063-T5 Aluminum
Free to start · No card required · The agent pulls this cut sheet in automatically
- Manufacturer
- Greenheck
- Catalog no.
- ehh-601de
- Product type
- Louvers
- MasterFormat
- 23

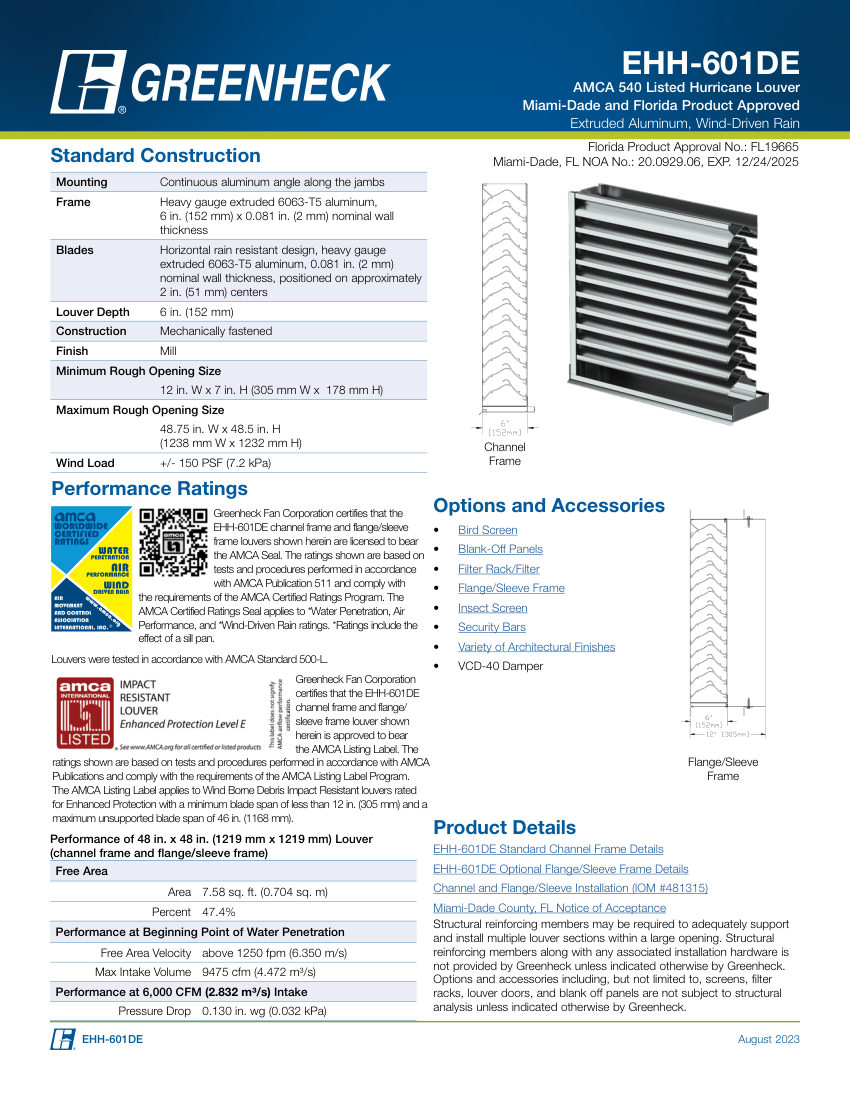

- Cut sheet
- PDF · manufacturer current
Product details
| Catalog number | ehh-601de |
|---|---|
| Description | Greenheck Hurricane Louver (Louver). Model EHH-601DE. Wind-Driven Rain resistant; Louver depth 6 in. (152 mm); Blades positioned on approx 2 in. (51 mm) centers; Free area 47.4% for 48x48 in. size. material: Extruded 6063-T5 Aluminum |
| Pressure Rating | +/- 150 PSF (7.2 kPa) |
| Flow Rate | 9475 cfm (4.472 m³/s) |
| Finish | Mill |
| Mounting | Continuous aluminum angle along the jambs |
| Dimensions | Min 12 in. W x 7 in. H; Max 48.75 in. W x 48.5 in. H. |
