Greenheckehh-601pd penthouseehh-601pd

Greenheck Louvered Penthouse (Penthouse). Model EHH-601PD. Heavy gauge extruded 6063-T5 aluminum frame and blades; Horizontal rain resistant blade design; Welded construction; Minimum throat size 12 in. W x 12 in. L (305 mm W x 305 mm L). material: Extruded 6063-T5 Aluminum

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFehh-601pd.pdfData sheet

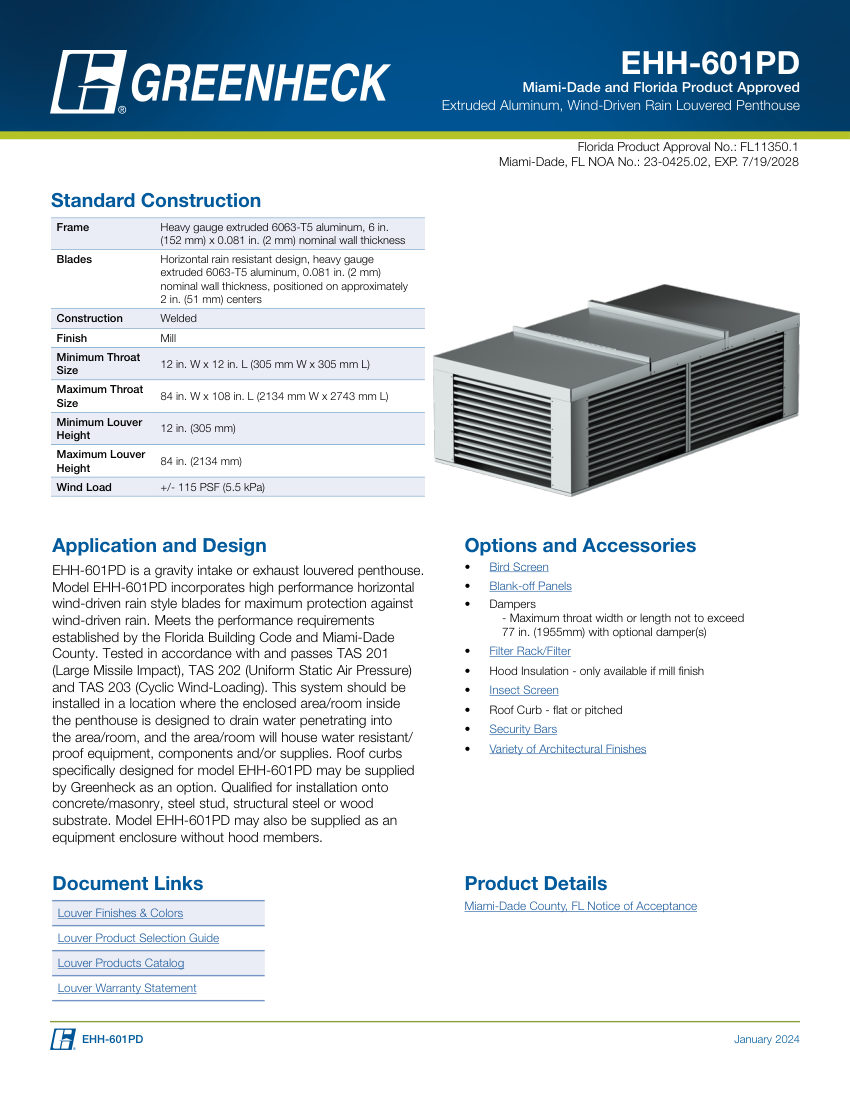

Greenheck ehh-601pd cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Greenheck
Catalog no.
ehh-601pd
Product type
Louvers
MasterFormat
23
Cut sheet
PDF · manufacturer current

Product details

Catalog numberehh-601pd
DescriptionGreenheck Louvered Penthouse (Penthouse). Model EHH-601PD. Heavy gauge extruded 6063-T5 aluminum frame and blades; Horizontal rain resistant blade design; Welded construction; Minimum throat size 12 in. W x 12 in. L (305 mm W x 305 mm L). material: Extruded 6063-T5 Aluminum
Pressure RatingWind Load +/- 115 PSF (5.5 kPa)
FinishMill
MountingConcrete/masonry, steel stud, structural steel or wood substrate
DimensionsMin Throat 12 in. W x 12 in. L; Max Throat 84 in. W x 108 in. L
ComplianceFlorida Product Approval No. FL11350.1; Miami-Dade NOA No. 23-0425.02; TAS 201, TAS 202, TAS 203
