DIV 08 · OPENINGSLOUVERSCUT SHEET INDEXED

Greenheckehh-701 wind driven rain louverehh-701

Greenheck Wind-Driven Rain Louver (Louver). Model EHH-701. Horizontal blade design with 2.25 in. (57 mm) centers; Wind load rating of 25 PSF (1.2 kPa); Free area of 43.7% for 48 in. x 48 in. size; Pressure drop of 0.200 in. wg at 6,000 CFM intake. material: Extruded 6063-T5 aluminum

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFehh-701.pdfData sheet

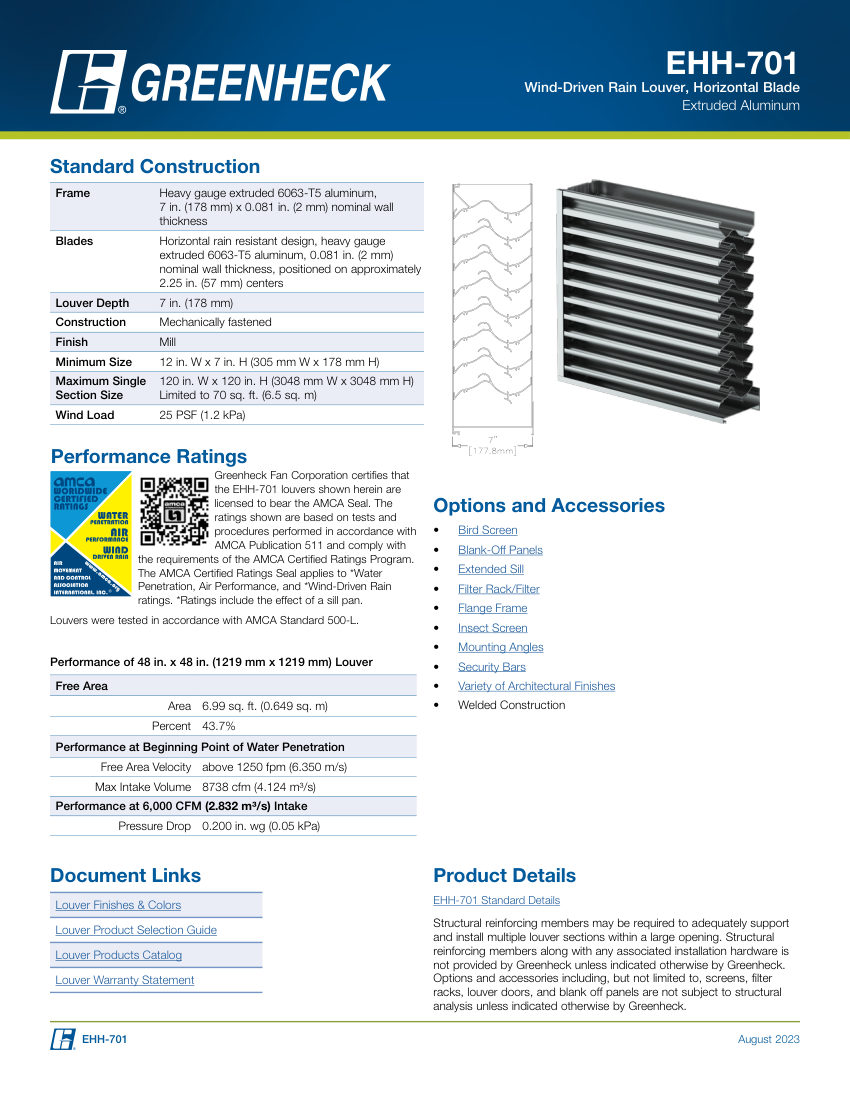

Greenheck ehh-701 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Greenheck
Catalog no.
ehh-701
Product type
Louvers
MasterFormat
08
Cut sheet
PDF · manufacturer current

Product details

Catalog numberehh-701
DescriptionGreenheck Wind-Driven Rain Louver (Louver). Model EHH-701. Horizontal blade design with 2.25 in. (57 mm) centers; Wind load rating of 25 PSF (1.2 kPa); Free area of 43.7% for 48 in. x 48 in. size; Pressure drop of 0.200 in. wg at 6,000 CFM intake. material: Extruded 6063-T5 aluminum
Flow Rate8738 cfm (4.124 m³/s) max intake volume
FinishMill
MountingMechanically fastened
DimensionsMin 12 in. W x 7 in. H; Max 120 in. W x 120 in. H; Depth 7 in.
ComplianceAMCA Certified Ratings Program (AMCA 500-L).
