Greenheckehv-550 hurricane louverehv-550

Greenheck Hurricane Louver (Louver). Model EHV-550. Louver depth is 5.5 in. (140 mm); Front blades are inverted drainable style on 1.9 in. centers; Back blades are vertical rain resistant design on 0.88 in. centers; Free area is 50.1% for a 48 in. x 48 in. louver. material: Extruded 6063-T5 and 6005-T5 aluminum

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFehv-550.pdfData sheet

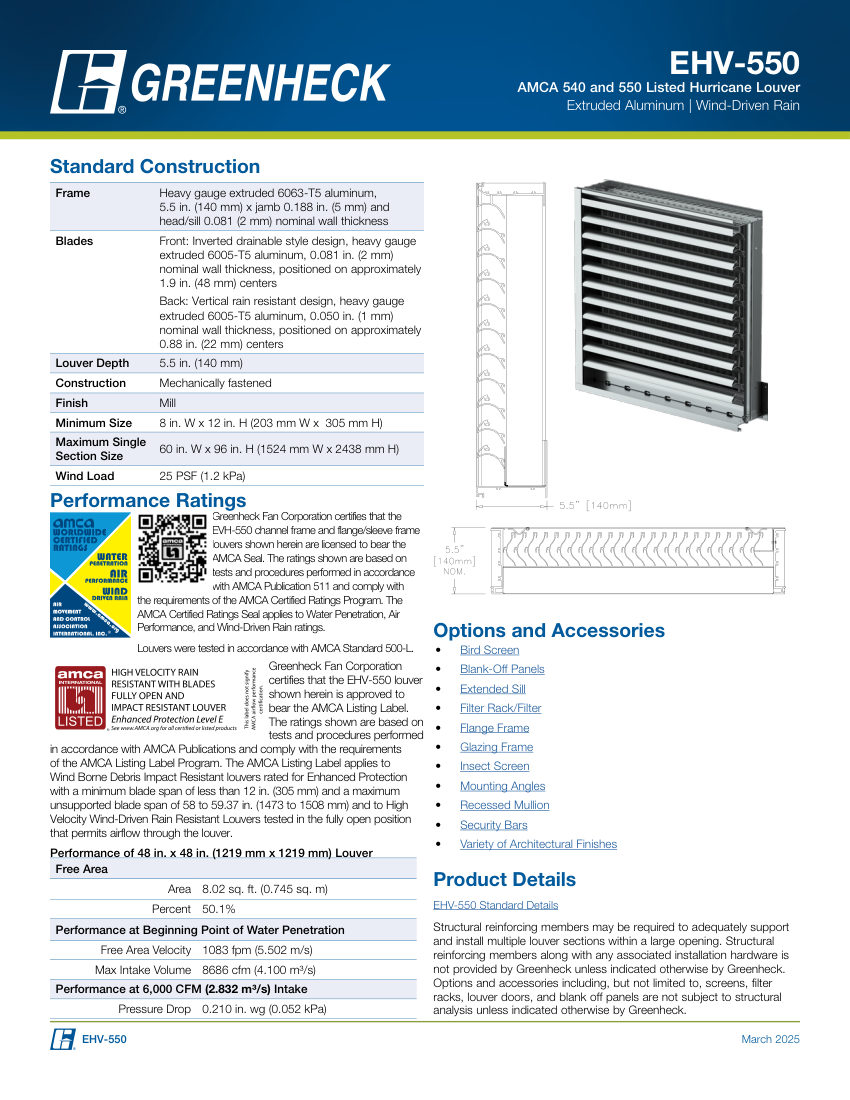

Greenheck ehv-550 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Greenheck
Catalog no.
ehv-550
Product type
Louvers
MasterFormat
08
Cut sheet
PDF · manufacturer current

Product details

Catalog numberehv-550
DescriptionGreenheck Hurricane Louver (Louver). Model EHV-550. Louver depth is 5.5 in. (140 mm); Front blades are inverted drainable style on 1.9 in. centers; Back blades are vertical rain resistant design on 0.88 in. centers; Free area is 50.1% for a 48 in. x 48 in. louver. material: Extruded 6063-T5 and 6005-T5 aluminum
Pressure Rating25 PSF (1.2 kPa) Wind Load
Flow Rate8686 cfm (4.100 m³/s) Max Intake Volume
FinishMill
MountingMechanically fastened
DimensionsMin 8 in. W x 12 in. H; Max 60 in. W x 96 in. H.
