DIV 08 · OPENINGSLOUVERSCUT SHEET INDEXED

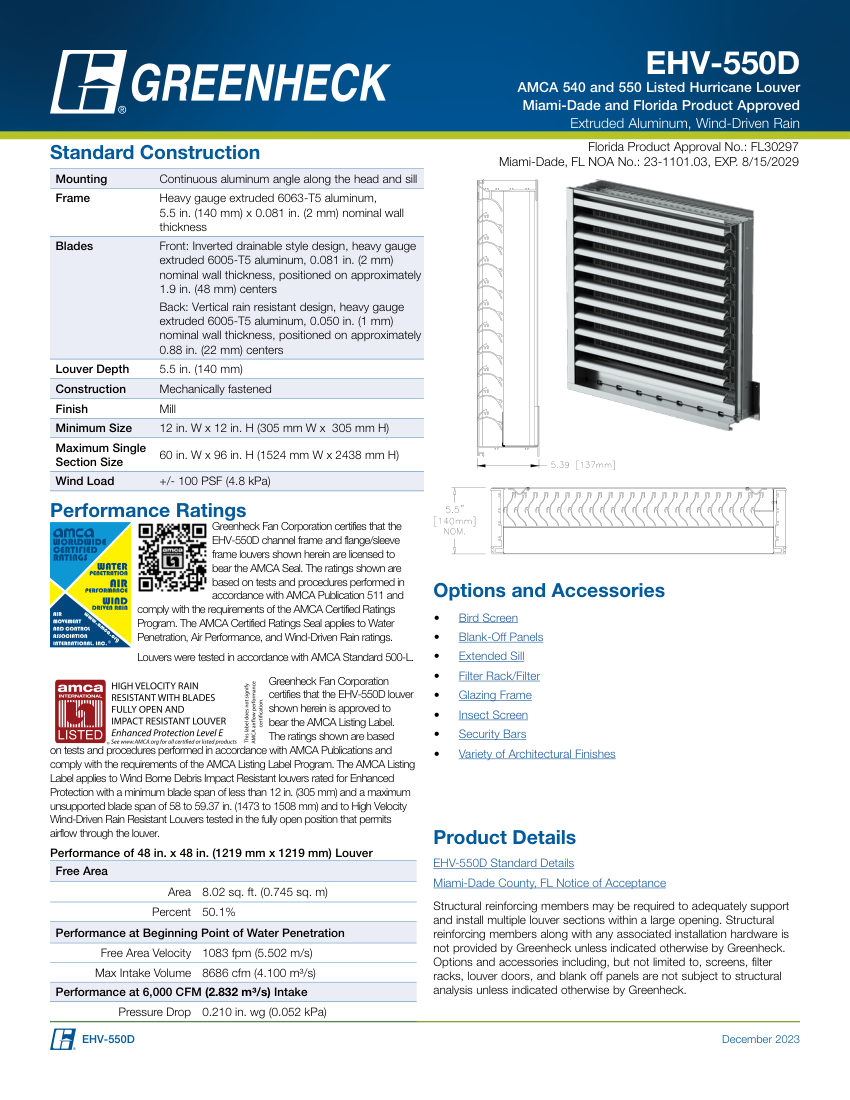

Greenheckehv-550d hurricane louverehv-550d
Greenheck Hurricane Louver (Louver). Model EHV-550D. Wind-Driven Rain Resistant
Free to start · No card required · The agent pulls this cut sheet in automatically
- Manufacturer
- Greenheck
- Catalog no.
- ehv-550d
- Product type
- Louvers
- MasterFormat
- 08
- Cut sheet
- PDF · manufacturer current
Product details
| Catalog number | ehv-550d |
|---|---|
| Description | Greenheck Hurricane Louver (Louver). Model EHV-550D. Wind-Driven Rain Resistant |
| Free Area | 50.1% (for 48x48 in. louver) |
| Blade Span | < 12 in. (305 mm) for Enhanced Protection |
| Pressure Drop | 0.210 in. wg at 6,000 CFM. material: Extruded Aluminum (6063-T5 Frame, 6005-T5 Blades) |
| Pressure Rating | +/- 100 PSF (4.8 kPa) |
| Flow Rate | 8686 cfm (4.100 m³/s) at 6,000 CFM intake |
| Finish | Mill |
| Mounting | Continuous aluminum angle along the head and sill |
| Dimensions | Min: 12 in. W x 12 in. H |
| Max Single Section | 60 in. W x 96 in. H |
| Depth | 5.5 in. |
