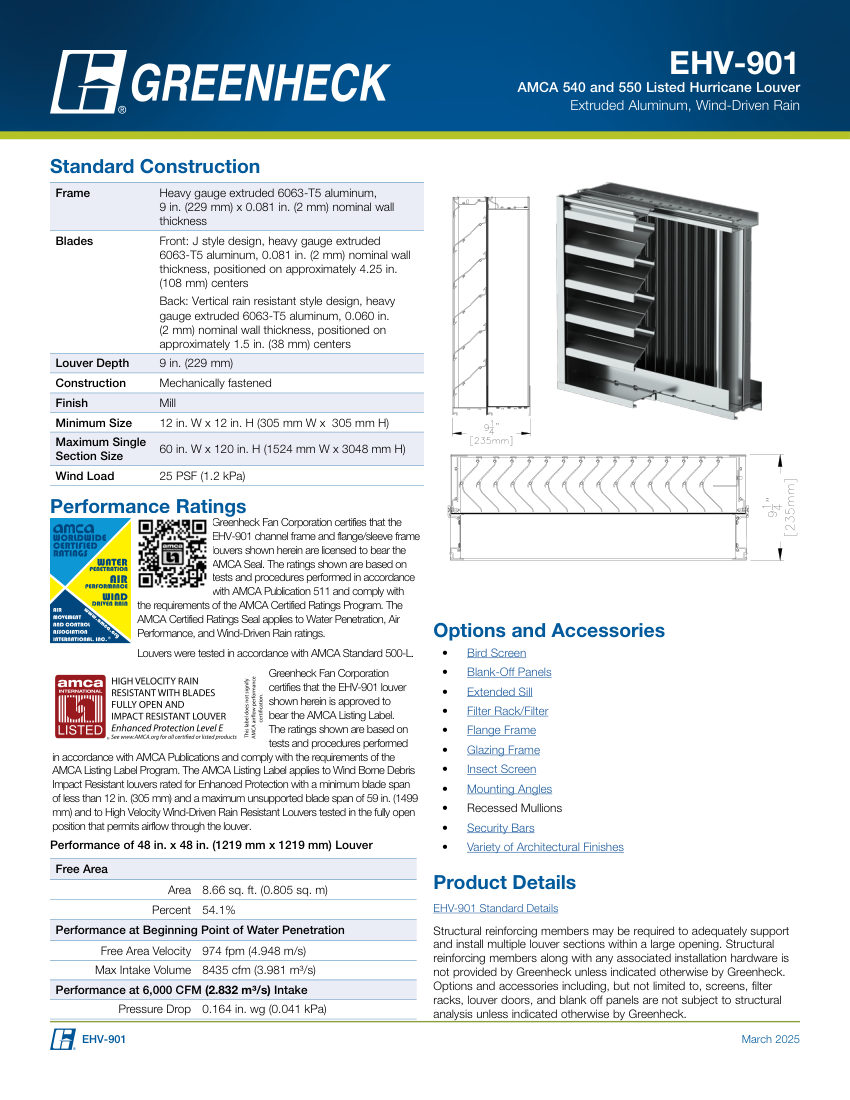

Greenheckehv-901 hurricane louverehv-901

Name: Greenheck ehv-901 hurricane louver
Brand: Greenheck
SKU: ehv-901

Greenheck Hurricane Louver (Louver). Model EHV-901. Wind Load: 25 PSF (1.2 kPa)

Free to start · No card required · The agent pulls this cut sheet in automatically

Product details

Catalog number	ehv-901
Description	Greenheck Hurricane Louver (Louver). Model EHV-901. Wind Load: 25 PSF (1.2 kPa)
Free Area	54.1% (for 48 in. x 48 in. louver)
Blade Design	Front J style, Back vertical rain resistant
Blade Spacing	Front approx 4.25 in., Back approx 1.5 in.. material: Extruded 6063-T5 aluminum
Flow Rate	8435 cfm (3.981 m³/s) at beginning point of water penetration
Finish	Mill
Mounting	Mechanically fastened
Dimensions	Min 12 in. W x 12 in. H; Max 60 in. W x 120 in. H; Depth 9 in.
Compliance	AMCA 540 and 550 Listed.
