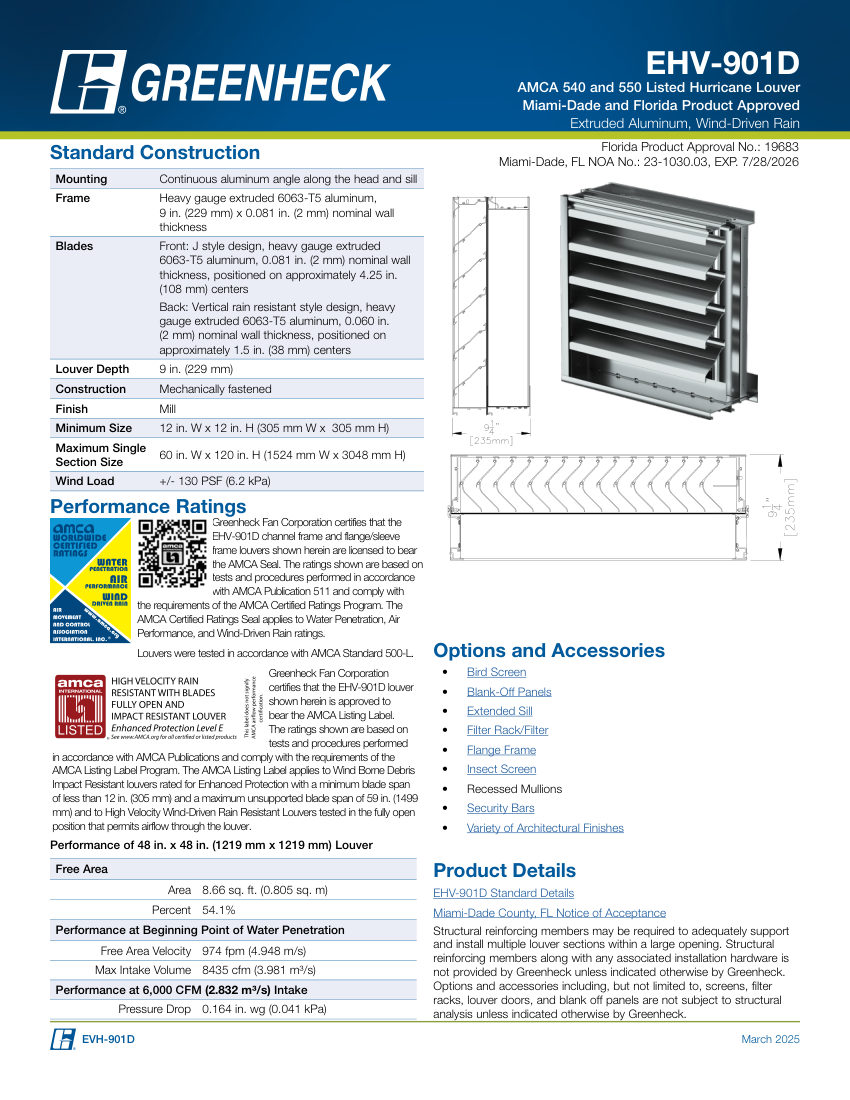

Greenheckehv-901d hurricane louverehv-901d
Greenheck Hurricane Louver (Louver). Model EHV-901D. Wind Load: +/- 130 PSF (6.2 kPa)
Free to start · No card required · The agent pulls this cut sheet in automatically
- Manufacturer
- Greenheck
- Catalog no.
- ehv-901d
- Product type
- Louvers
- MasterFormat
- 23
- Cut sheet
- PDF · manufacturer current
Product details
| Catalog number | ehv-901d |
|---|---|
| Description | Greenheck Hurricane Louver (Louver). Model EHV-901D. Wind Load: +/- 130 PSF (6.2 kPa) |
| Louver Depth | 9 in. (229 mm) |
| Free Area | 54.1% (for 48 in. x 48 in. size) |
| Pressure Drop | 0.164 in. wg (0.041 kPa) at 6,000 CFM. material: Extruded 6063-T5 aluminum |
| Flow Rate | 8435 cfm (3.981 m³/s) at beginning point of water penetration |
| Finish | Mill |
| Mounting | Continuous aluminum angle along the head and sill |
| Dimensions | Min 12 in. W x 12 in. H; Max 60 in. W x 120 in. H |
| Compliance | AMCA 540 and 550 Listed, Miami-Dade and Florida Product Approved. |
